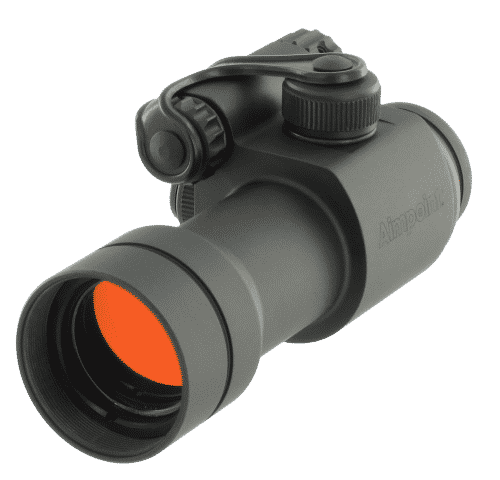

Like the CompM3, the Aimpoint® CompML3 features our breakthrough Advanced Circuit Efficiency Technology (ACET) that gives the sight unparalleled battery life and ease of use.Â
It is the perfect choice for professionals, hunters, and sport shooters who don’t need night vision device compatibility but want an extremely tough and reliable sight.
Built primarily for use in daylight and in low light conditions for law enforcement and military applications, the CompML3 will hold up under the roughest physical handling and the most severe weather conditions.Â

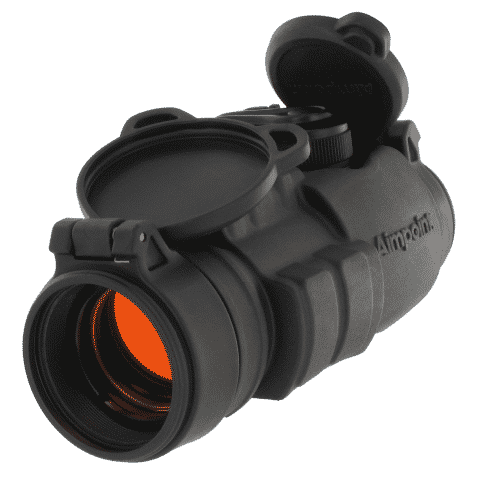

The CompML3 comes with a replaceable outer black rubber cover, which protects it from scratching and adds an additional stealth factor. The outer cover is also available in Dark Earth Brown – perfect camo for use in the desert and the jungle.
Note: For night vision compatibility we recommend the CompM3.Â
Please note that the appearance of some components of this product such as the rubber strap, the covers for the adjustment screws and the battery lid have recently been changed.Â
GENERAL SPECIFICATIONS:
Art.No: 11405/11416
OPTICAL SPECIFICATIONS:
Operating principle: Reflex Collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 or 4 MOA
Dot intensity: Visible against a background luminance of 0,1 to 55 000 lx
Optical signature: No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD 3
Dot color: Peak Wavelength: 650 ± 10 nm
NVD compatible: Yes
Optical coating: Anti-reflex, all surfaces and multi-layer. NVD-Compatible 1, 2, 3
Clear aperture: 23 mm
Eye relief: Unlimited
POWER SOURCE:
Battery type: 3V lithium battery, type 2L76 or DL1/3N.
Battery life - Day time use: 50 000 h continuous (pos. 6 of 10)
Power intensity: 4 NVD and 6 Daylight, of which 1 extra bright
PHYSICAL SPECIFICATIONS:
Length sight only: 115 mm (4 1/2")
Length conf: 130 mm (5 1/8") incl rubber cover and flip-up lens covers
Width: 62 mm (2 7/16"), incl rubber cover, 55 mm (2 3/16") without
Height sight only: 55 mm (2 3/16") without rubber cover
Height conf: 58 mm (2 5/16") incl rubber cover
Weight sight only (incl battery): 220 g (7,8 oz)
Weight conf: 270 g (9,5 oz) incl. Lens Covers, and Rubber Cover
Housing material: High Strength Aluminum
Housing finish and color: Matte black
Material mount and spacer std conf: High Strength Aluminum
Surface treatment: Hard anodized, matte, with protective rubber armor cover
Height of optical axis - sight and mount: 30 mm (1 3/16") over top surface of Picatinny/Weaver Rail
Height of optical axis - sight, mount and Micro spacer XX: 39 mm (1 9/16") over top surface of Picatinny/Weaver Rail
Adjustment: Range ±2 m at 100 meters (±2 yds at 100 yds) in windage and elevation, 1 click = 16 mm at 100 meters = 13 mm at 80 meters = 9/16" at 80 yds
ENVIRONMENTAL SPECIFICATIONS:
Temperature range operation: -45°C to 71°C (-49°F to 160°F)
Temperature range storage: -51°C to 71°C (-60°F to 160°F)
Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic
Immersion, static: Operates after immersion until temperature is stabilized + 10°C compared to the water. Limits: Depth: 45 m (150 ft.)
Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature)
Vibration: Operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min
Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
MECHANICAL INTERFACE:
Keyed surface mount: Not included
