DBK-03-BDC Vortex Optics Diamondback 3.5–10x50 Rifle scope with Dead-Hold BDC Reticle (MOA)
SKU DBK-03-BDC
Out of stock right now. You can order now, and it ships when it arrives.
Out of stock
Out of stock right now. Leave your email and we will let you know when it is back.
Urgent? Contact usThe Diamondback® — loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback® riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
3.5-10×50 riflescope is ideal for big game, predator/varmint, muzzleloader, slug shotgun, and long range applications.
Dead-Hold BDC reticle has a customized design that helps eliminate guesswork on hold-over and windage corrections. Good for any hunting or shooting at varying ranges where estimating hold-over would be a concern.
- 1-year manufacturer warranty · How the warranty works
- Free shipping over $200 · US shipping only
- 30-day returns for a full refund (sale items too) · Returns policy
- Secure card payment on our checkout page
Have a Glock? Turn it into a carbine.
KIRO MORPH PCC Conversion System for Glock | Rapid Deployment Chassis with Spring Loaded Stock / Brace
Description
The Diamondback® — loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback® riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts a waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
- 3.5-10×50 riflescope is ideal for big game, predator/varmint, muzzleloader, slug shotgun, and long-range applications.
- Dead-Hold BDC reticle has a customized design that helps eliminate guesswork on hold-over and windage corrections. Good for any hunting or shooting at varying ranges where estimating hold-over would be a concern.

Included In The Box:
- VIP Unconditional Lifetime Warranty
- Removable lens covers
- Lens cloth
Optical Features |
|
| Fully Multi-Coated | Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Construction Features |
|
| Tube Size | 1-inch diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter’s position. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |

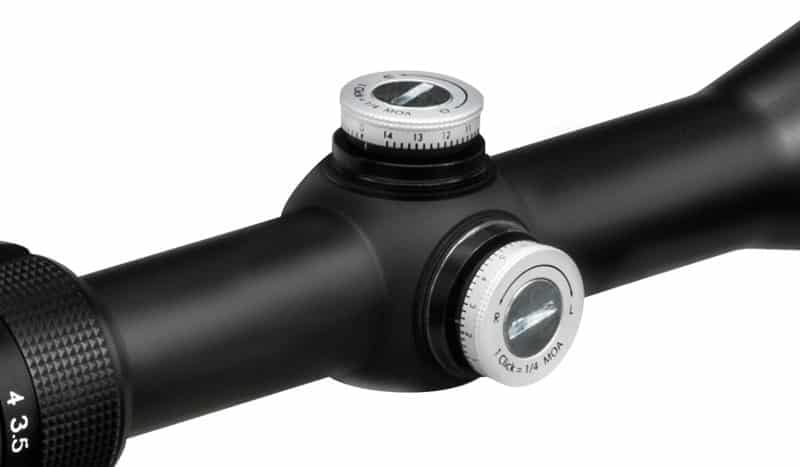

| Capped Reset Turrets | Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret. |
Internal Mechanism Design Features |
|
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Specifications:
| Magnification | 3.5-10 x |
| Objective Lens Diameter | 50 mm |
| Eye Relief | 3.3 inches |
| Field of View | 35.8-13.5 feet/100 yards |
| Tube Size | 1 inch |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 15 MOA |
| Max Elevation Adjustment | 65 MOA |
| Max Windage Adjustment | 65 MOA |
| Parallax Setting | 100 yards |
| Length | 12.5 inches |
| Weight | 16.2 ounces |
| Product Manual (PDF) | |
| Product Manual 2 (PDF) |
Diamondback 3.5-10×50 Dimensions
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.5 | 2.0 | 2.1 | 5.4 | 3.9 | 3.1 |
| Heights | |
| H1 | H2 |
| 2.29 | 1.69 |
Dimensions measured in inches.

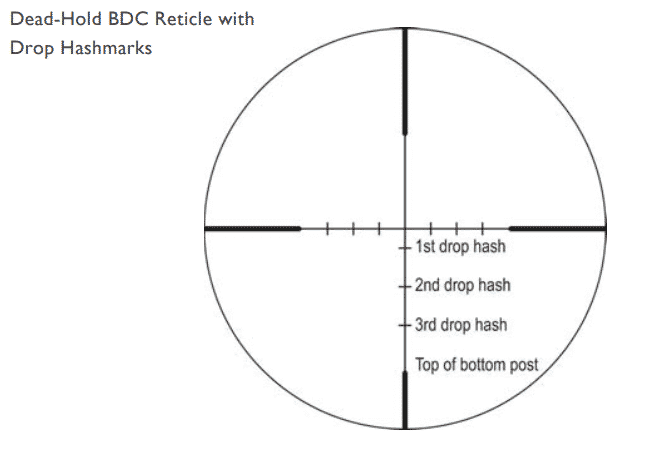

Dead-Hold BDC Reticle
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Specifications
| Manufacturer | Vortex Optics | |
|---|---|---|
| SKU | DBK-03-BDC |
