DBK-04-BDC Vortex Optics Diamondback 4-12x40 Riflescope Dead Hold BDC Reticle | 1 Inch Tube

Description:

Diamondback 4-12x40 Vortex Optics Riflescope Dead Hold BDC Reticle | 1 Inch Tube

DBK-04-BDC Vortex Optics Diamondback 4-12×40 Riflescope Dead Hold BDC Reticle | 1 Inch Tube

IN STOCK
Original price $219.95
YRS Club Register for 10% discount

$219.95

Diamondback 4-12×40 Vortex Optics Riflescope Dead Hold BDC Reticle | 1 Inch Tube

Availability: In stock SKU: DBK-04-BDC
  • Free Shipping For Order Above $150
  • 30 Days
    Returns
  • 10% Discount For Registered Users
  • Lowest Price
    Guaranteed
  • Over 200,000 Orders Shipped

Details & Specs

Description

The Diamondback—loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.

  • 4-12×40 riflescope is ideal for big game, predator/varmint, muzzleloader, slug shotgun, and long range applications.
  • Dead-Hold BDC reticle has a customized design that helps eliminate guesswork on hold-over and windage corrections. Good for any hunting or shooting at varying ranges where estimating hold-over would be a concern.

Features:

Optical Features:

Fully Multi-CoatedIncreases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane ReticleScale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.



Construction Features:

Tube Size1-inch diameter.
Single-Piece TubeMaximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade AluminumConstructed from a solid block of aircraft-grade aluminum for strength and rigidity.
WaterproofO-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
FogproofArgon gas purging prevents internal fogging over a wide range of temperatures.
ShockproofRugged construction withstands recoil and impact.
Hard Anodized FinishHighly durable low-glare matte finish helps camouflage the shooter’s position.
Precision-Glide Erector SystemUses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

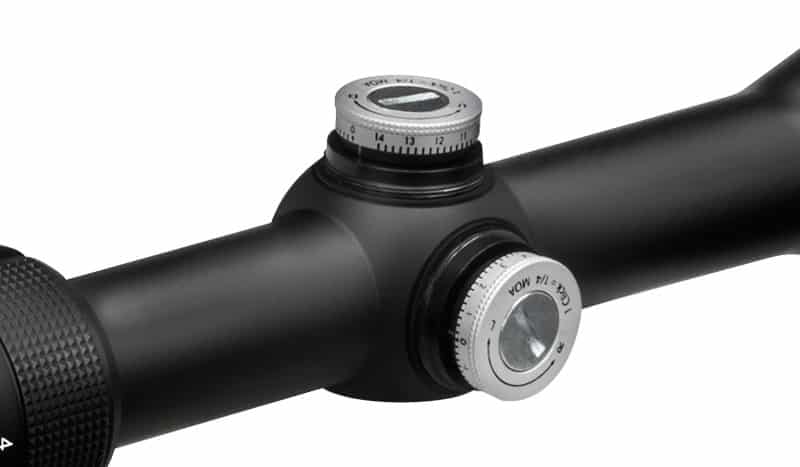

Capped Reset TurretsAllow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.



Internal Mechanism Design Features:

Precision-Glide Erector SystemUses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.



Convinience Features:

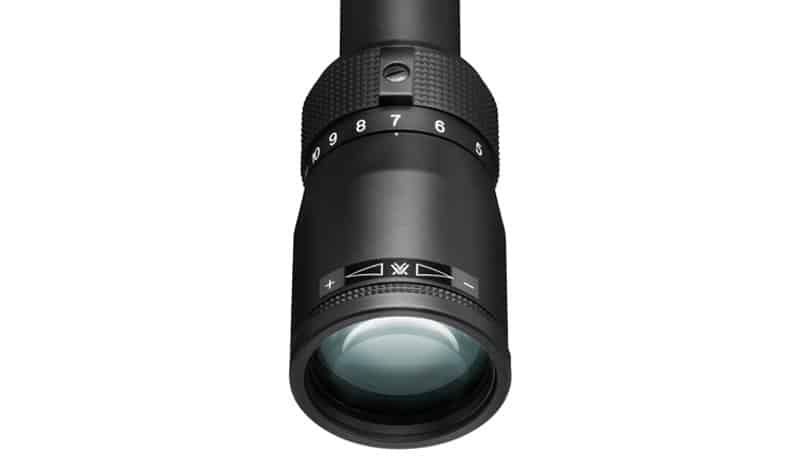

Fast Focus EyepieceAllows quick and easy reticle focusing.



Specifications:

Magnification4-12 x
Objective Lens Diameter40 mm
Eye Relief3.1 inches
Field of View32.4-11.3 feet/100 yards
Tube Size1 inch
Turret StyleCapped
Adjustment Graduation1/4 MOA
Travel per Rotation15 MOA
Max Elevation Adjustment60 MOA
Max Windage Adjustment60 MOA
Parallax Setting100 yards
Length12 inches
Weight14.6 ounces
Product Manual (PDF)Download
Product Manual 2 (PDF)Download

Dimensions:

DBK-04-BDC Vortex Optics Diamondback 4-12x40 Riflescope Dead Hold BDC Reticle | 1 Inch Tube 1

LENGTHS
L1L2L3L4L5L6
12.02.42.05.63.03.1



HEIGHTS
H1H2
1.891.69

* Dimensions measured in inches.

Reticle:

DBK-04-BDC Vortex Optics Diamondback 4-12x40 Riflescope Dead Hold BDC Reticle | 1 Inch Tube 2

DEAD-HOLD BDC RETICLE
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Subtension detail for the Diamondback 4-12×40 Dead-Hold BDC Reticle. >

Note

Read the Dead-Hold BDC Reticle manual for details on using the reticle for bullet drop compensation and wind drift compensation and ranging.
