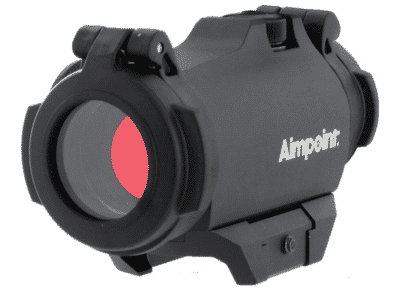

Micro H-2 Aimpoint 4MOA Red Dot Sight W/ Picatinny Mount and Flip Up Lens Covers

Description:

The Micro H-2 is a result of feedback coming from hard core customers desiring an even more hard core Micro sight. A redesigned and reinforced house body, as well as flip-up covers protecting the lenses.

SKU: 200183 Category:
Price:

$753.45

Out of stock

Description
Specifications

Overview

The Micro H-2 is a result of feedback coming from hard core customers desiring an even more hard core Micro sight. With a redesigned and reinforced house body, as well as flip-up covers protecting the lenses, the Micro H-2 can withstand all types of environmental conditions. And thanks to new optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved.

Unique Features:

  • Lightweight – 93 g without mount and 136 g with mount and flip-up lens covers
  • Integral Weaver- and Picaninny-style base allows easy attachment
  • ACET technology allows 50,000 hours of operation on one battery
  • Improved optics to increase the light transmission, the red dot is more distinct and clear
  • Available in 3 dot sizes (2, 4 and 6 MOA)
  • See through flip-up lens covers to make sure your optical lenses are always dry and clean
  • Fully waterproof
  • Stainless steel "helicoid" threads to prevent damaging of threads of the mount
  • Precision adjustment for windage and elevation: top of protective caps fits into holes on adjustment screws – no other tool required
  • 12 settings for use in daylight and low light conditions
GENERAL SPECIFICATIONS
Item No.: 200185 (2 MOA) / 200183 (4 MOA) / 200499 (6 MOA)



OPTICAL SPECIFICATIONS
Operating principle: Reflex collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 MOA or 4 MOA or 6 MOA
Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
Dot color: Peak Wavelength: 655 ± 15 nm
NVD compatible: No
Optical coating: Anti-reflex, all surfaces and multi-layer
Clear aperture: 18 mm (.71 in)
Eye relief: Unlimited



POWER SOURCE
Battery type: 3V lithium battery, type CR2032
Battery life - Day time use: 50 000h (over 5 years of continuous use)
Power intensity: 1 Off position and 12 daylight settings



PHYSICAL SPECIFICATIONS
Length sight only: 68 mm (2.7 in)
Length conf: 79 mm (3.1 in)
Width sight only: 41 mm (1.6 in)
Height sight only: 36 mm (1.4 in)
Height conf: 47 mm (1.9 in)
Weight sight only (incl battery): 94 g (3.3 oz)
Weight conf: 130 g (4.6 oz) incl lens covers and mount
Housing material: High strength Aluminum
Housing finish and color: Semi matte black
Material mount and spacer std conf: High strength Aluminum
Surface treatment: Anodized, semi matte
Height of optical axis - sight and mount: 20 mm (.8 in) over top surface of Picatinny/Weaver Rail
Height of optical axis - sight, mount and low spacer: Spacer low: 50 mm (2 in) over top surface of Picatinny/Weaver Rail
Height of optical axis - sight, mount and high spacer: Spacer high: 59 mm (2.3 in) over top surface of Picatinny/Weaver Rail
Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = .44 in at 100 yds



ENVIRONMENTAL SPECIFICATIONS
Temperature range operation: -30°C to +60°C (-20°F to +140°F)
Temperature range storage: -51°C to +71°C (-60°F to +160°F)
Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)
Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Submersible: To a depth of 5 m (15 ft)
Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction).
Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Chemical resistance: Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.
