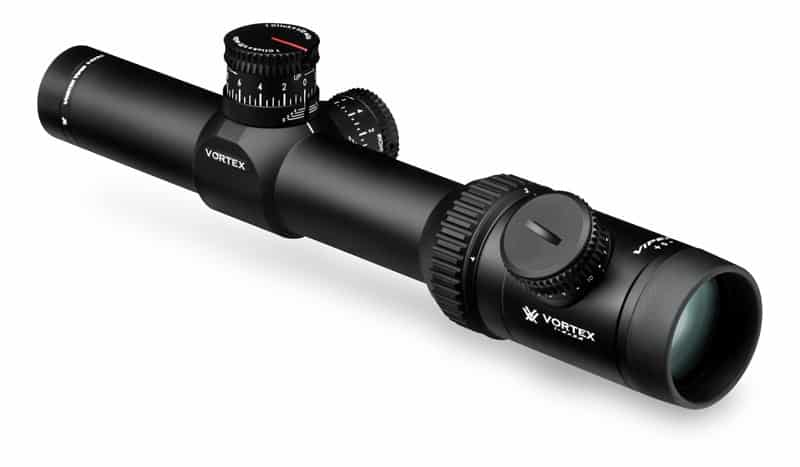

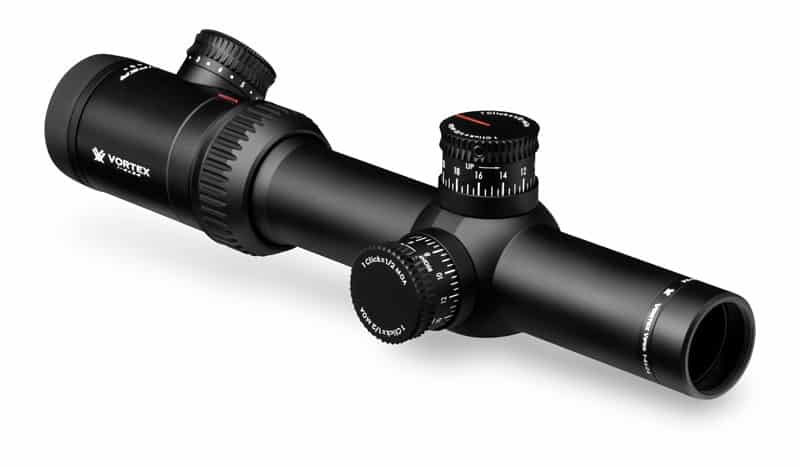

PST-14ST-A Vortex Optics Viper PST 1-4x24 Riflescope with TMCQ Reticle (MOA)

Description:

PST-14ST-A Vortex Optics Viper PST 1-4x24 Riflescope

SKU: PST-14ST-A Category:
Price:

$604.95

Out of stock

Description
Specifications

The Viper PST (Precision Shooting Tactical) riflescope boasts features associated with top-tier riflescopes, yet comes in at a street price under the $1,000 mark. Matching reticle and turret measurements allow accurate, fast dialing of shots. The one-piece 30mm tube, precision-machined from a single solid block of aircraft-grade 6061-T6 aluminum, offers ample windage and elevation adjustment. Born from an intimate understanding of riflescope design, forward-thinking engineering, and open ears to a market incredibly vocal about what it wants in a riflescope, the Viper PST series delivers the performance and features tactical shooters demand at an economical price.

Features:

Optical Features:

XD Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Glass-etched Reticle Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle Provides precise aiming under low-light conditions.

Construction Features

Tube Size 30 mm diameter.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

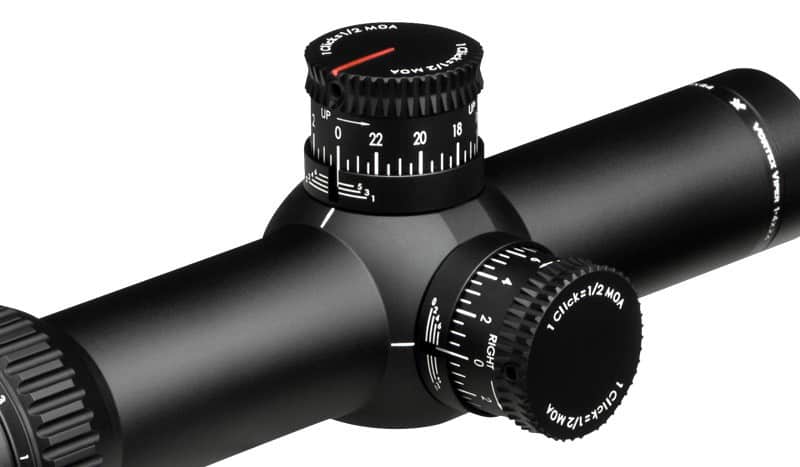

Tactical-Style Turrets Exposed turrets provide fast, accurate and easily read elevation and windage adjustments.

Internal Mechanism Design Features:

CRS Zero Stop Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.
Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convinience Features:

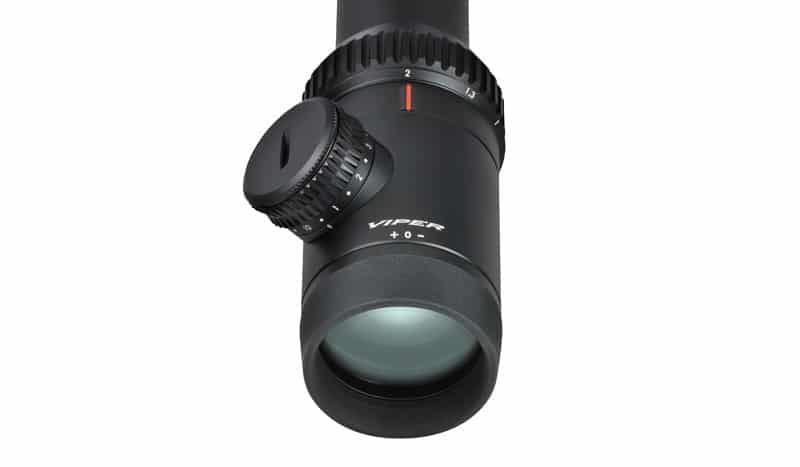

MAG-View Fiber Optic Provides a highly visible reference point for the magnification setting.
Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879
Fast Focus Eyepiece Allows quick and easy reticle focusing.

Specifications:

Magnification 1-4 x
Objective Lens Diameter 24 mm
Eye Relief 4.0 inches
Field of View 98-27.5 feet/100 yards
Tube Size 30 mm
Turret Style Tactical
CRS Zero Stop
Adjustment Graduation 1/2 MOA
Travel per Rotation 24 MOA
Max Elevation Adjustment 220 MOA
Max Windage Adjustment 220 MOA
Parallax Setting 100 yards
Length 9.7 inches
Weight 16.2 ounces
Product Manual (PDF) Download
Product Manual 2 (PDF) Download

Dimensions:

PST-14ST-A Vortex Optics Viper PST 1-4x24 Riflescope with TMCQ Reticle (MOA) 6

LENGTHS
L1 L2 L3 L4 L5 L6
9.7 2.5 2.2 6.0 3.6



HEIGHTS
H1 H2
1.18 1.63

* Dimensions measured in inches.

Reticle:

PST-14ST-A Vortex Optics Viper PST 1-4x24 Riflescope with TMCQ Reticle (MOA) 7

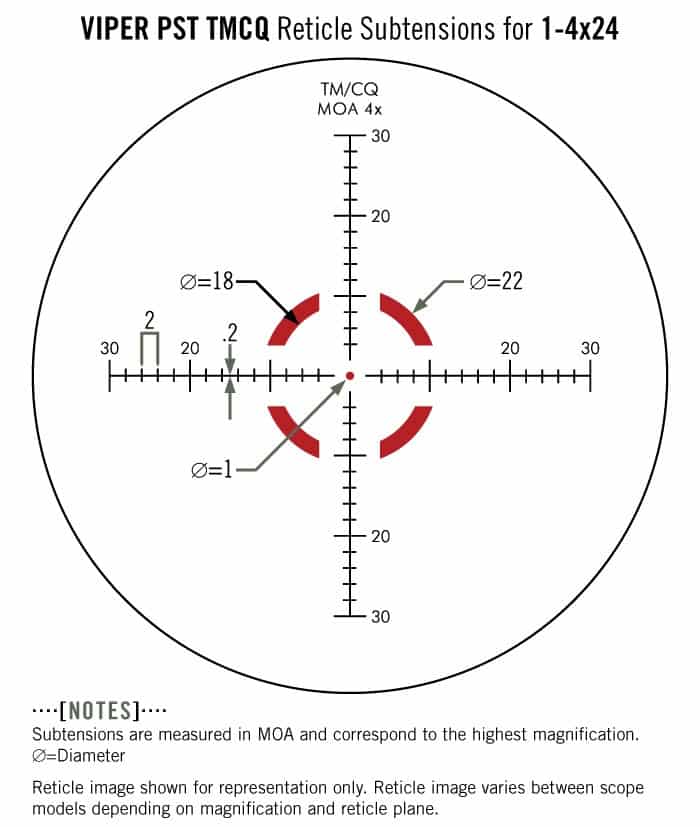

TMCQ RETICLE (MOA)

The TMCQ (Tactical Milling Close Quarter) is a hashmarked ranging reticle using MOA-based subtension lines for ranging, holdover, and windage corrections.

Subtension detail for the Viper PST 1-4x24 riflescope with TMCQ MOA reticle. >

Note

Read the Viper PST 1-4x24 Riflescope with TMCQ MOA Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
