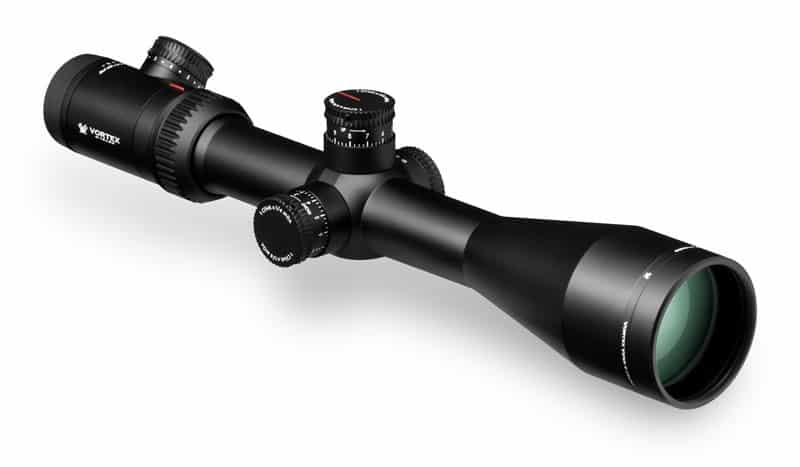

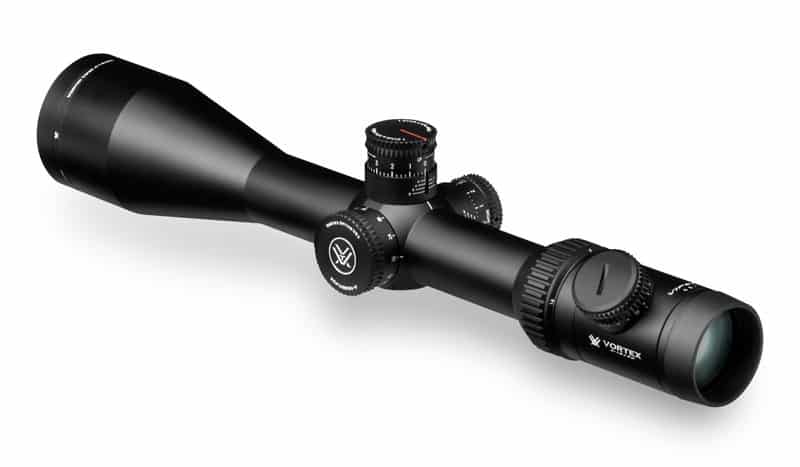

The Viper PST (Precision Shooting Tactical) riflescope boasts features associated with top-tier riflescopes, yet comes in at a street price under the $1,000 mark. Matching reticle and turret measurements allow accurate, fast dialing of shots. The one-piece 30mm tube, precision-machined from a single solid block of aircraft-grade 6061-T6 aluminum, offers ample windage and elevation adjustment. Born from an intimate understanding of riflescope design, forward-thinking engineering, and open ears to a market incredibly vocal about what it wants in a riflescope, the Viper PST series delivers the performance and features tactical shooters demand at an economical price.
Features:
Optical Features:
XD Lens Elements |
Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
XR Fully Multi-Coated |
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
First Focal Plane Reticle |
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
Glass-etched Reticle |
Protected between two layers of glass for optimum durability and reliability. |
Illuminated Reticle |
Provides precise aiming under low-light conditions. |
Construction Features:
Tube Size |
30 mm diameter. |
Single-Piece Tube |
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum |
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
Fogproof |
Argon gas purging prevents internal fogging over a wide range of temperatures. |
Shockproof |
Rugged construction withstands recoil and impact. |
Hard Anodized Finish |
Highly durable low-glare matte finish helps camouflage the shooter's position. |
ArmorTek |
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |

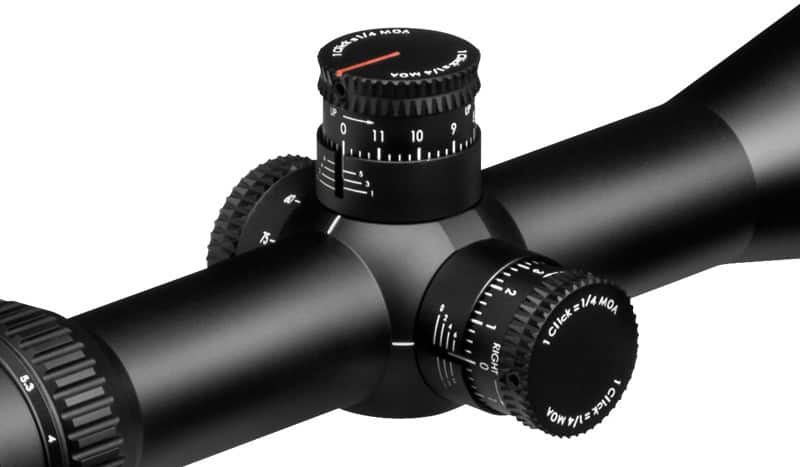

Tactical-Style Turrets |
Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
Side Focus |
Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Internal Mechanism Design Features:
CRS Zero Stop |
Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction. |
Precision-Force Spring System |
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
Precision-Glide Erector System |
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features:

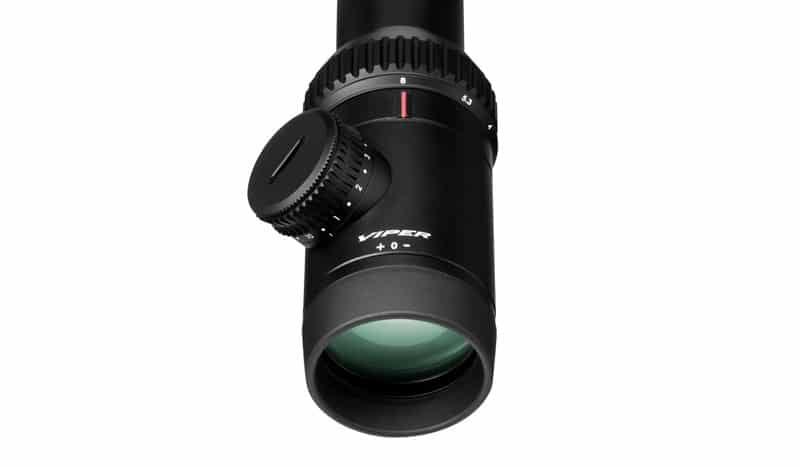

MAG-View Fiber Optic |
Provides a highly visible reference point for the magnification setting. |
Radius Bar |
Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879 |
Fast Focus Eyepiece |
Allows quick and easy reticle focusing. |
Specifications:
Magnification |
4-16 x |
Objective Lens Diameter |
50 mm |
Eye Relief |
4.0 inches |
Field of View |
27.4-7.4 feet/100 yards |
Tube Size |
30 mm |
Turret Style |
Tactical
CRS Zero Stop |
Adjustment Graduation |
1/4 MOA |
Travel per Rotation |
12 MOA |
Max Elevation Adjustment |
75 MOA |
Max Windage Adjustment |
75 MOA |
Parallax Setting |
50 yards to Infinity |
Length |
13.7 inches |
Weight |
22.4 ounces |
Product Manual (PDF) |
Download |
Product Manual 2 (PDF) |
Download |
Included In the Box:Â
- 4-inch sunshade
- CR2032 battery
- CRS shims
- Lens cloth
- VIP Unconditionl Lifetime Warranty
Dimensions:
LENGTHS |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
13.7 |
2.1 |
2.2 |
5.6 |
4.2 |
3.6 |
* Dimensions measured in inches.
Reticle:

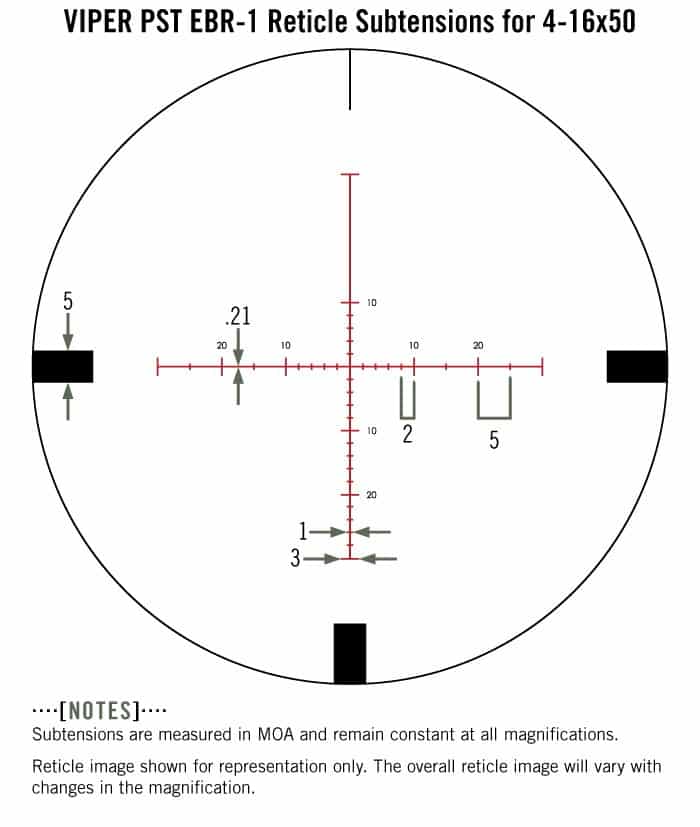

EBR-1 RETICLE (MOA)
The EBR-1 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. First focal plane reticle.
Subtension detail for the Viper PST 4-16x50 FFP riflescope with EBR-1 MOA reticle.>
Note
Read the Viper PST 4-16x50 FFP Riflescope with EBR-1 MOA Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
