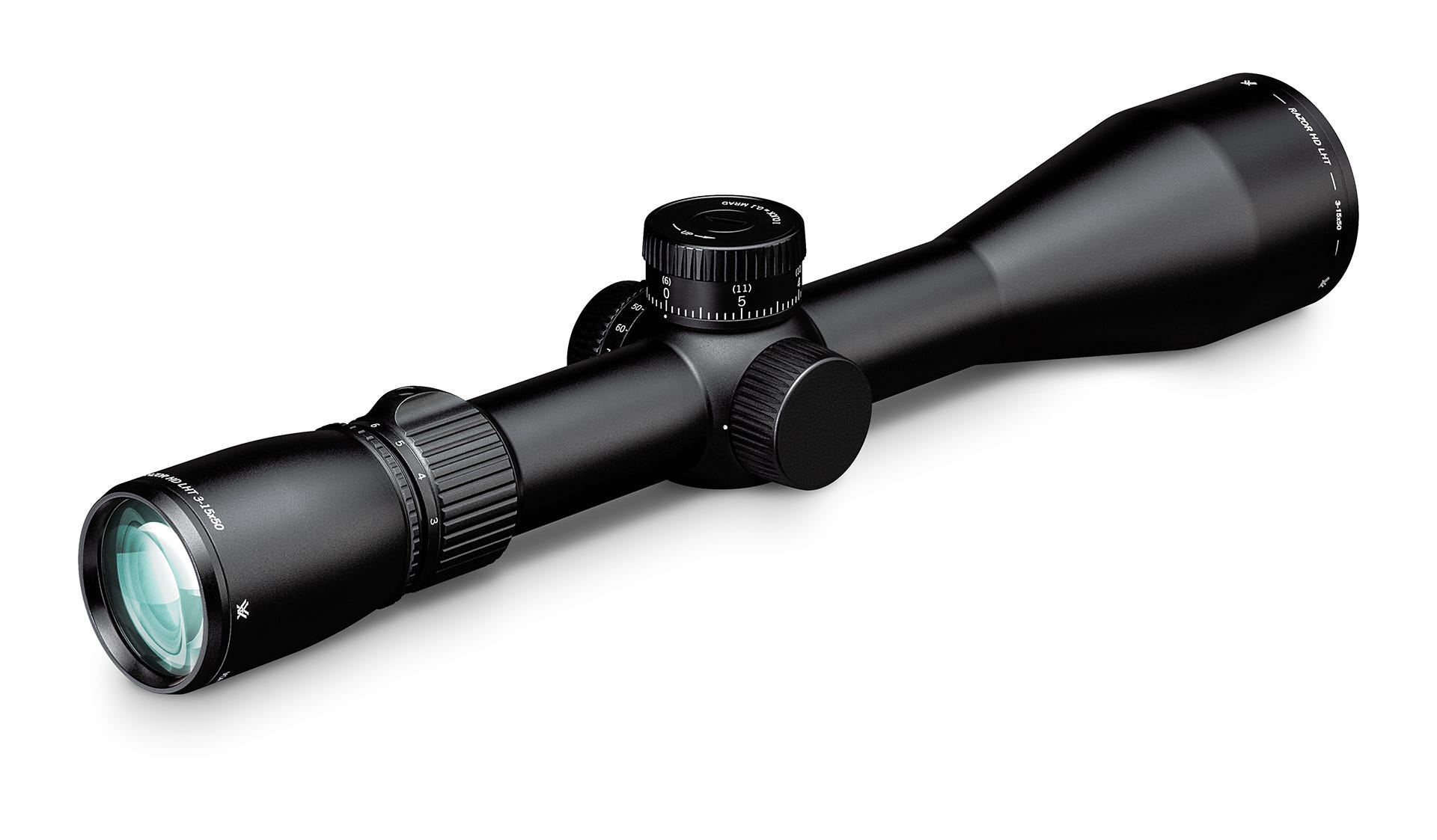

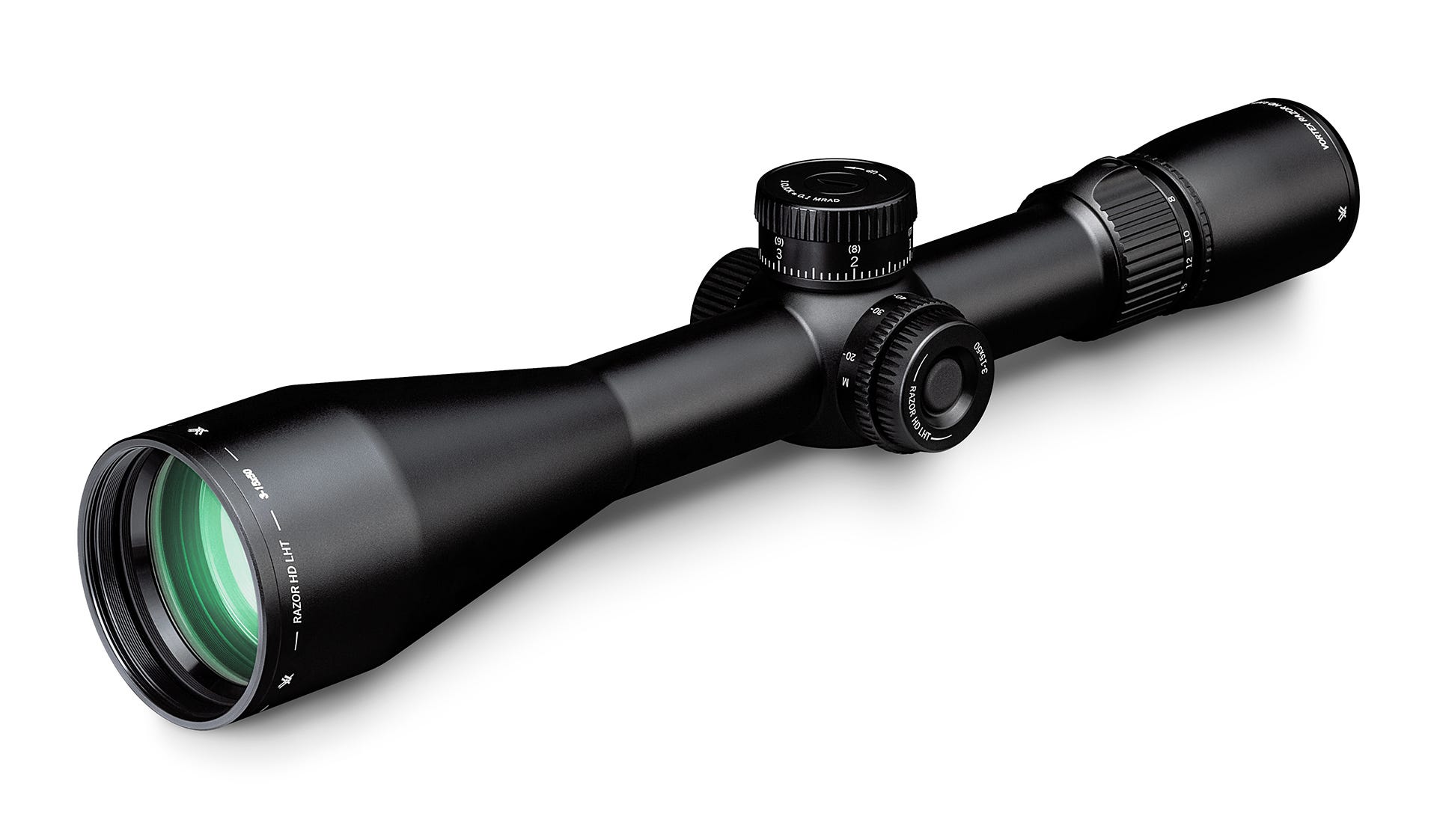

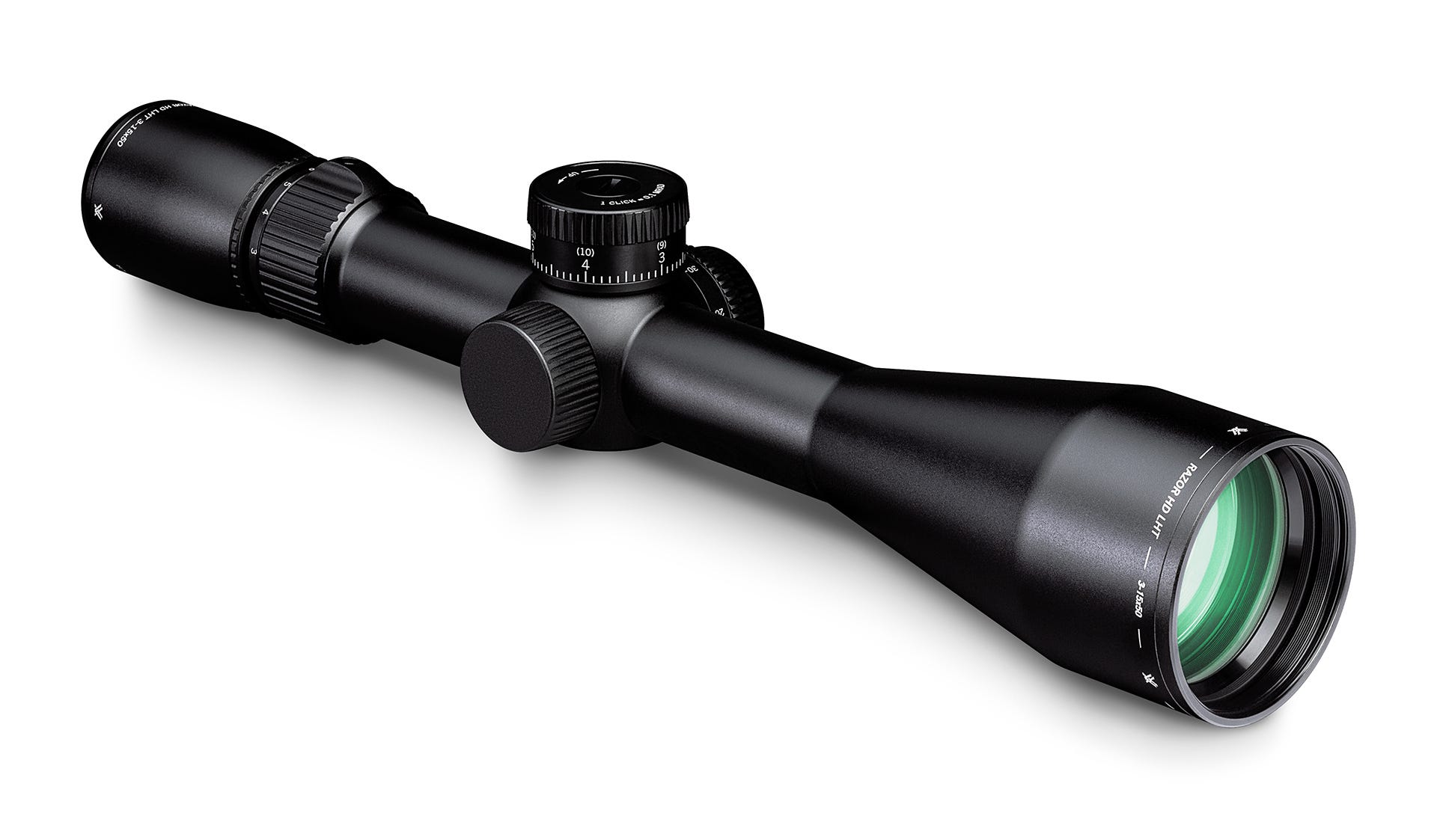

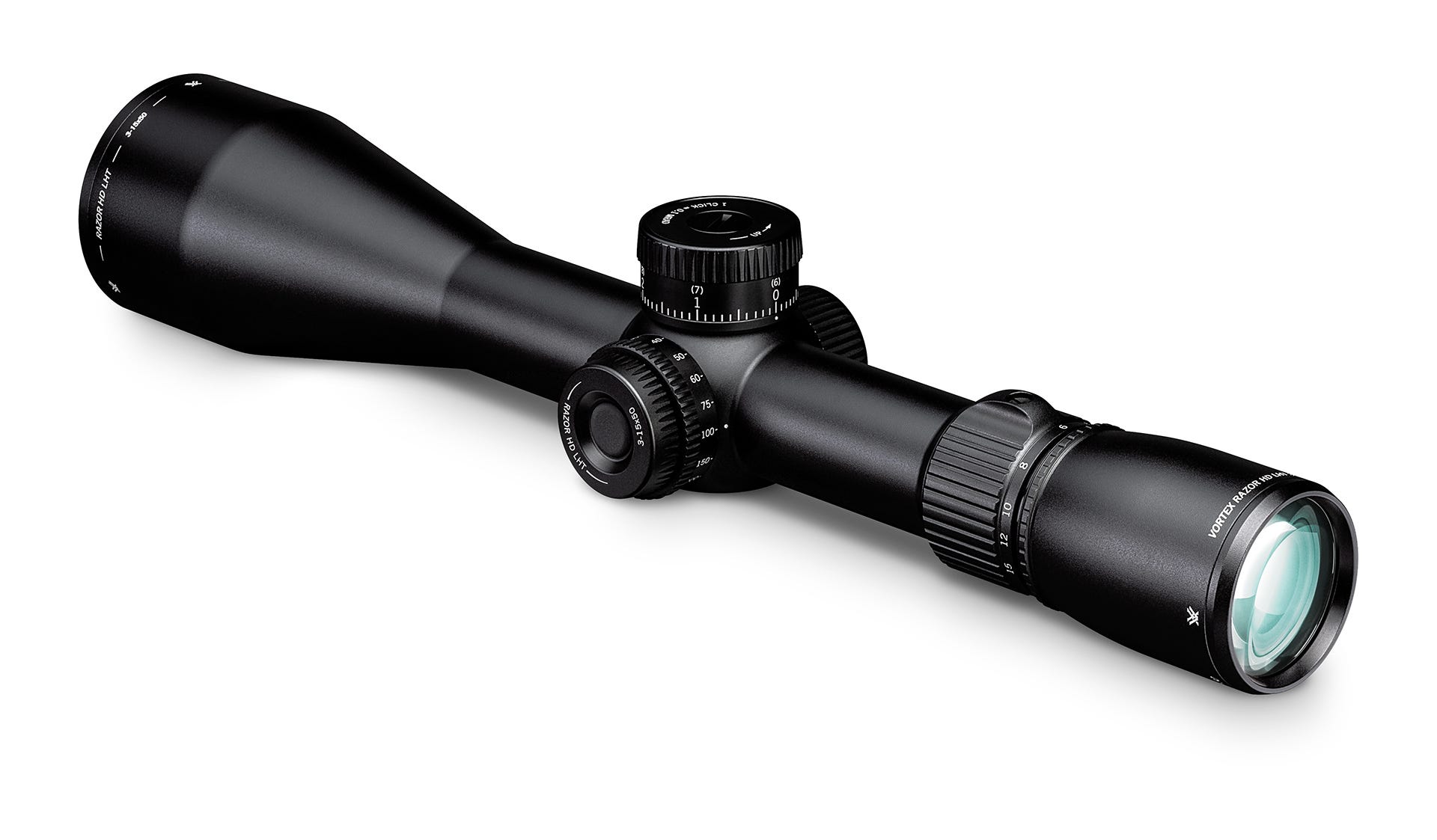

RZR-31503 Vortex Optics RAZOR® HD LHT™ 3-15X50 Riflescope

One scope to rule them all. From dark-timber whitetails, to executing precision long-range shots on an open-country mule deer, and everything in between - there’s the lightweight, second focal plane Razor HD LHT. Stunning, High Definition optical system delivers a crystal-clear sight picture with tack-sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve sacrificed nothing with the Razor HD LHT.



Optical Features:

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission
XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.


Construction Features:

Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Matte Anodized Finish Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Locking Elevation Turret Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
Large Diameter Capped Windage Turret Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.


Convenience Features:

RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.



Magnification 3-15x
Objective Lens Diameter 50 mm
Eye Relief 3.8 inches
Field of View 35.3-7.0 ft/100 yds
Tube Size 30 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Capped
Adjustment Graduation 10 MRAD
Travel per Rotation 6 MRAD
Max Elevation Adjustment 23 MRAD
Max Windage Adjustment 23 MRAD
Parallax Setting 20 yards to infinity
Length 13.3 inches
Weight 20.5 oz
Product Manual Download (PDF)
Reticle Manual Download (PDF)
Parts Diagram Download (PDF)


Included In the Box:

  • Sunshade
  • Lens Covers
  • Lens cloth
  • CR2032 battery
  • Free Custom Ballistic Strip Coupon


RZR-31503 Vortex Optics RAZOR® HD LHT™ 3-15X50 Riflescope 8

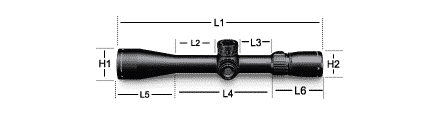

L1 L2 L3 L4 L5 L6
13.6 2.6 2.0 6.2 3.7 2.0

**Dimensions measured in inches.

H1 H2
2.32 1.7

**Dimensions measured in inches.

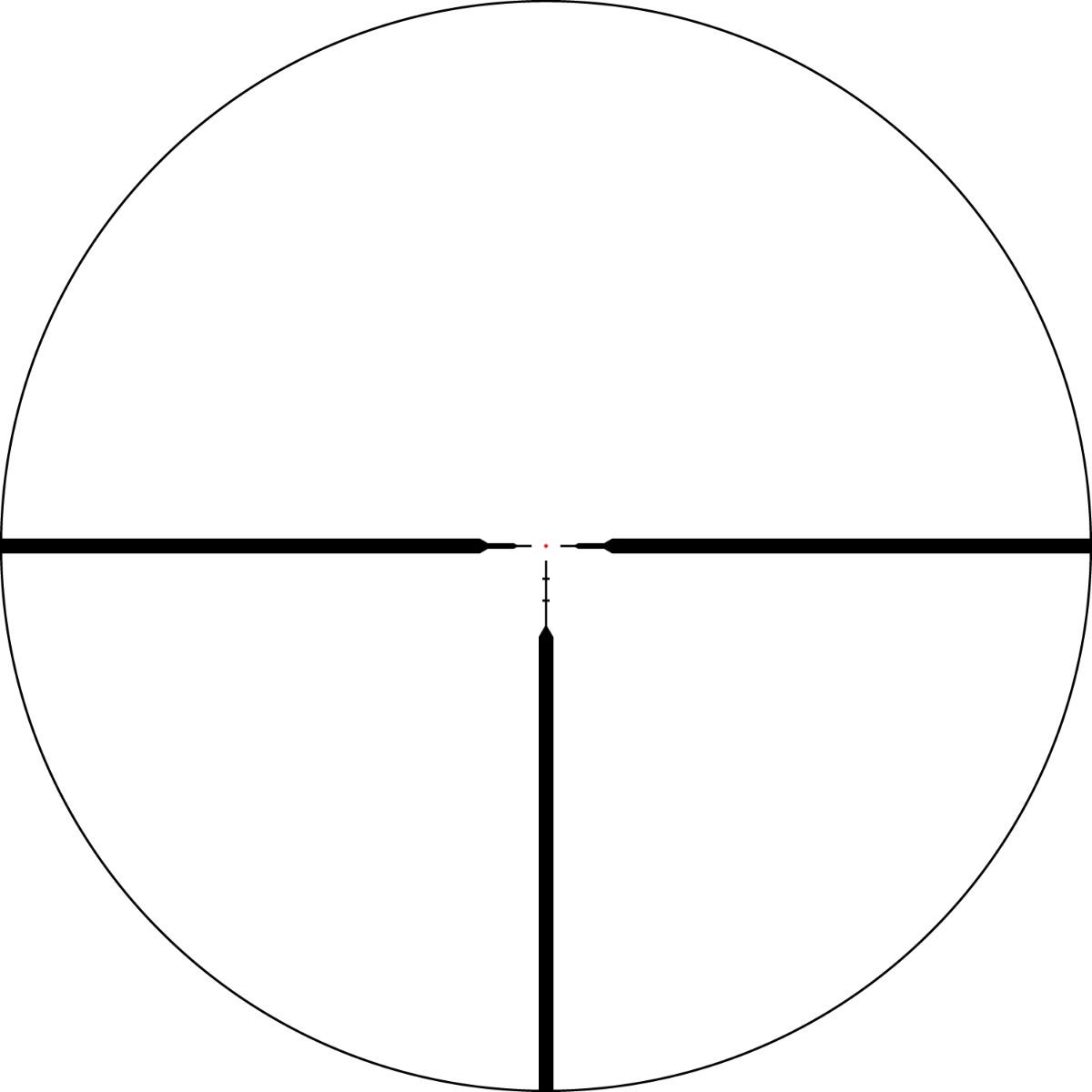

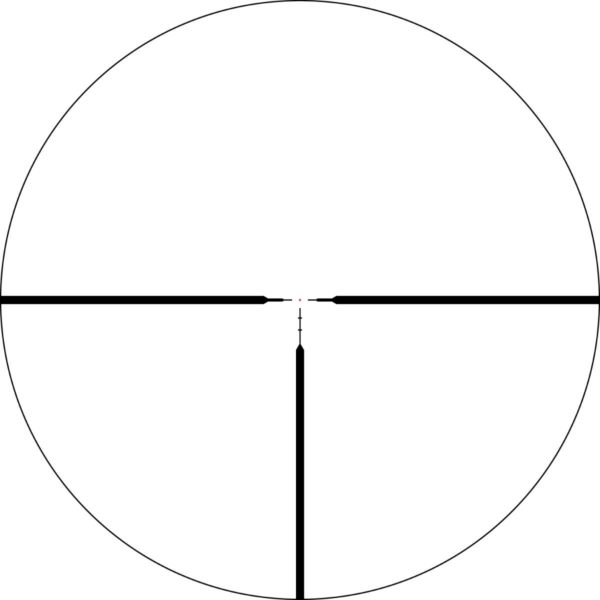

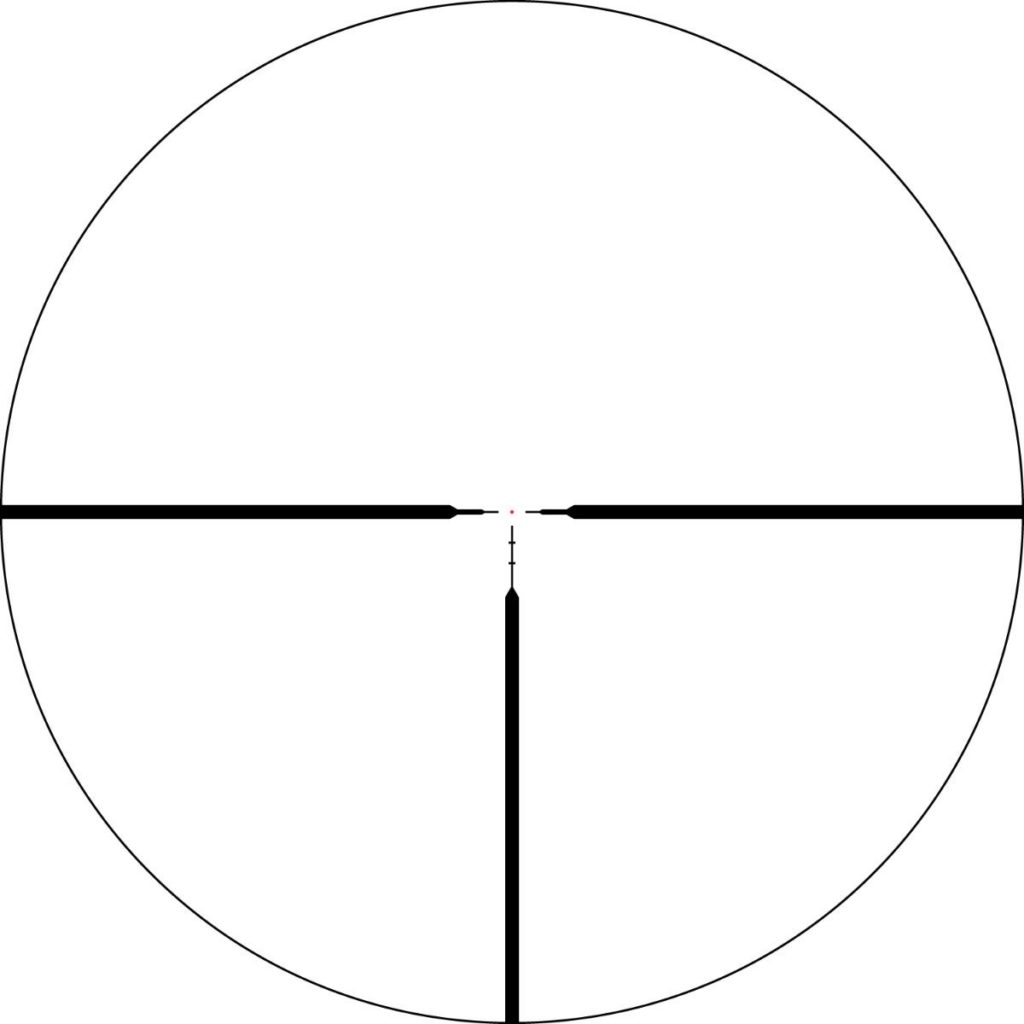

G4i-BDC reticle can be used effectively with a variety of firearms, including high powered rifles, rimfire rifles, blackpowder rifles, and slug shotguns. This reticle also provides reference marks to compensate for bullet drop and bullet drift in windy conditions.

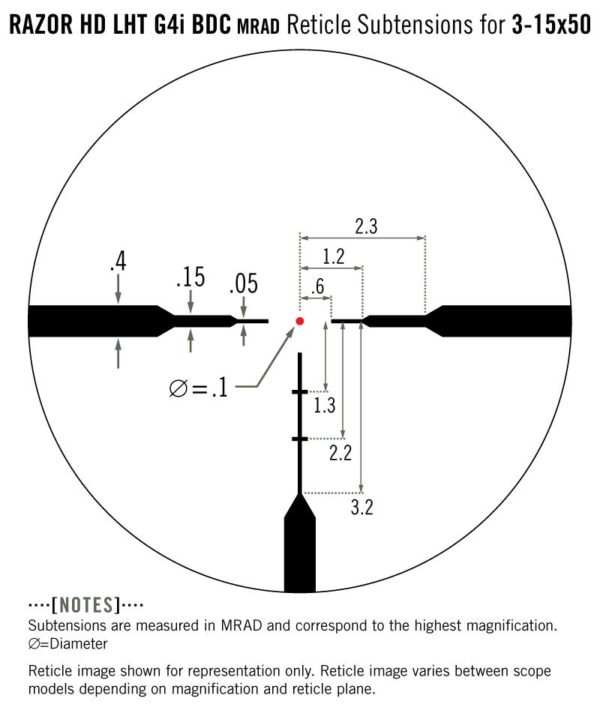

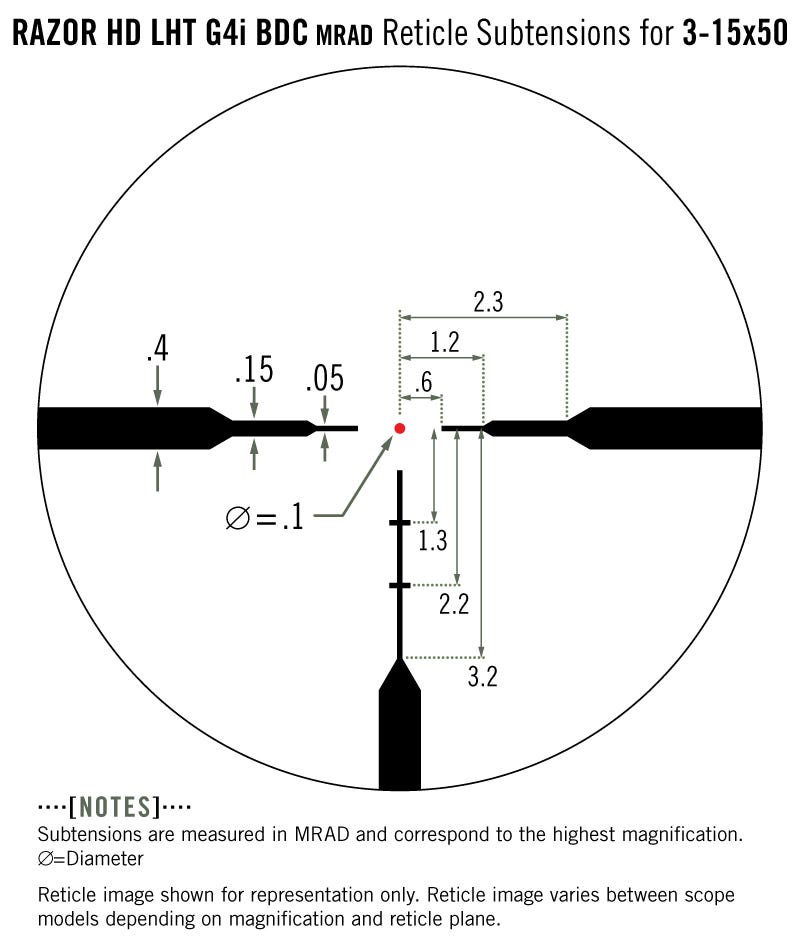

Subtension detail for Razor HD LHT 3-15x50 riflescope with G4i BDC MRAD reticle.
