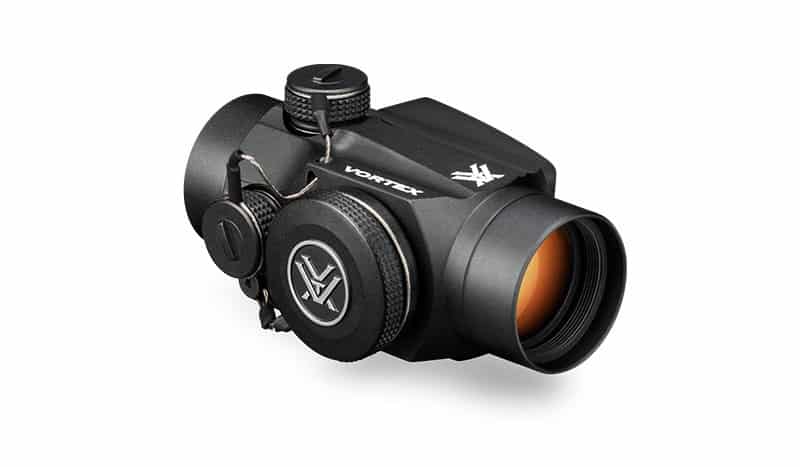

SPC-402 Vortex Optics SPARC II 2 MOA Bright Red Dot

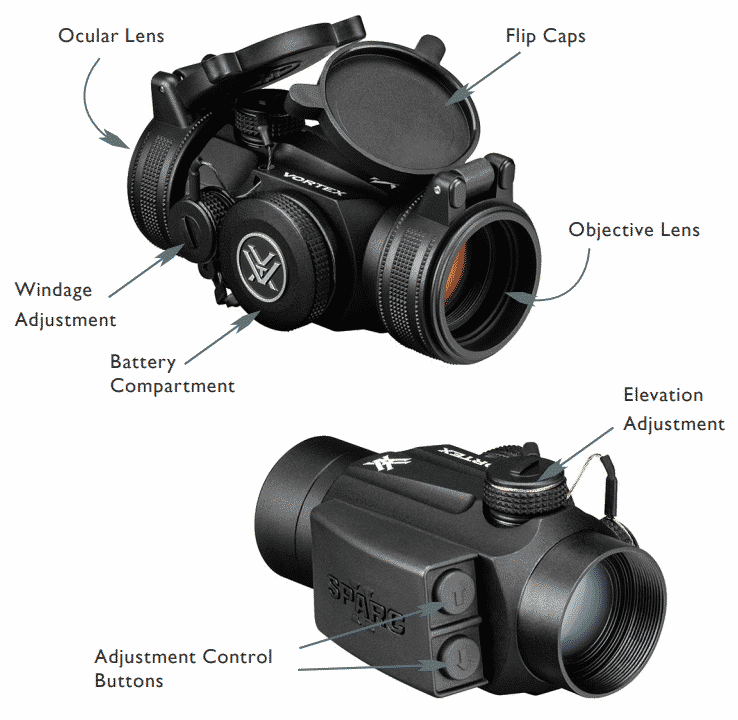

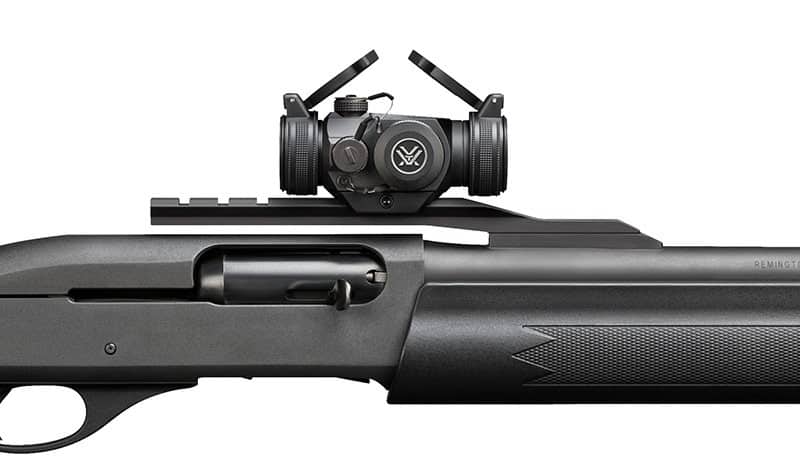

Get on target fast with the SPARC II. Ultra-compact and lightweight, the SPARC II (Speed Point Aiming for Rapid Combat) is equally at home mounted on an AR-15 or shotgun. Digital rear facing controls for powering on/off and adjusting the 2 MOA daylight bright red dot brightness at ten intensity levels—automatically returning to the last dot intensity used when powered up. Rugged single-piece body machined from aircraft grade aluminum is o-ring sealed for waterproof and fogproof performance.

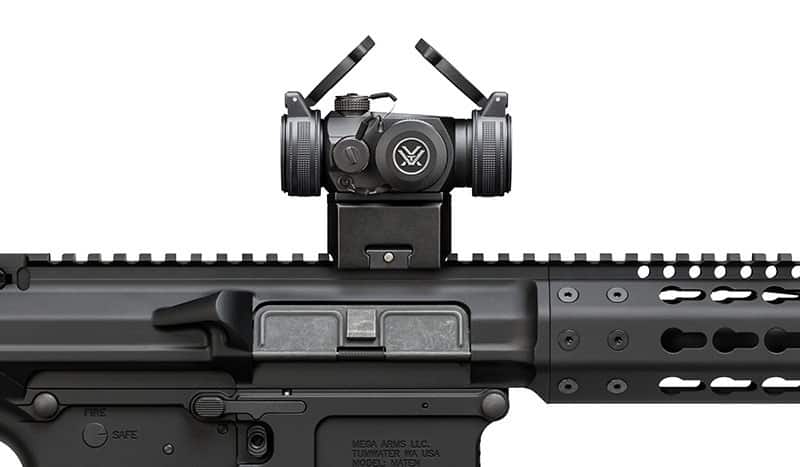

The versatile multi-height mount system accomodates most firearms including AR-15s needing absolute or lower 1/3 co-witness heights, and mounts on standard Weaver or Picatinny bases (not included). A modular three-piece base offers four separate mounting heights for user- and weapon-specific customization: 18.0 mm (.709 inches), 21 mm (.823 inches), 37 mm (1.457 inches), 40 mm (1.575 inches).

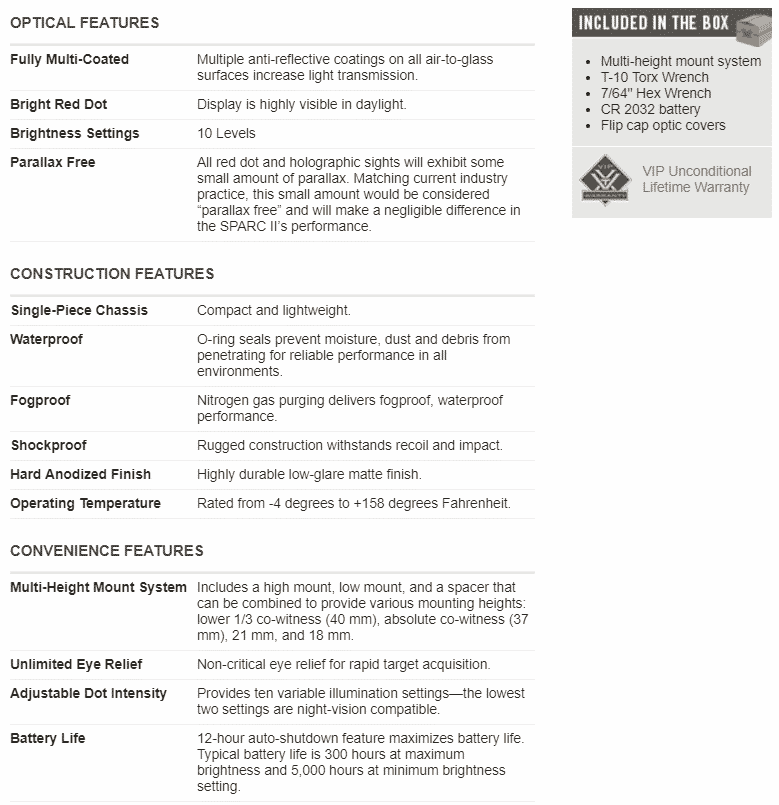

|Fully Multi-Coated||Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.|
|Bright Red Dot||Display is highly visible in daylight.|
|Brightness Settings||10 Levels|
|Single-Piece Chassis||Compact and lightweight.|
|Waterproof||O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.|
|Fogproof||Nitrogen gas purging delivers fogproof, waterproof performance.|
|Shockproof||Rugged construction withstands recoil and impact.|
|Hard Anodized Finish||Highly durable low-glare matte finish.|
|Operating Temperature||Rated from -4 degrees to +158 degrees Fahrenheit.|
|Multi-Height Mount System||Includes a high mount, low mount, and a spacer that can be combined to provide various mounting heights: lower 1/3 co-witness (40 mm), absolute co-witness (37 mm), 21 mm, and 18 mm.|
|Unlimited Eye Relief||Non-critical eye relief for rapid target acquisition.|
|Adjustable Dot Intensity||Provides ten variable illumination settings—the lowest two settings are night-vision compatible.|

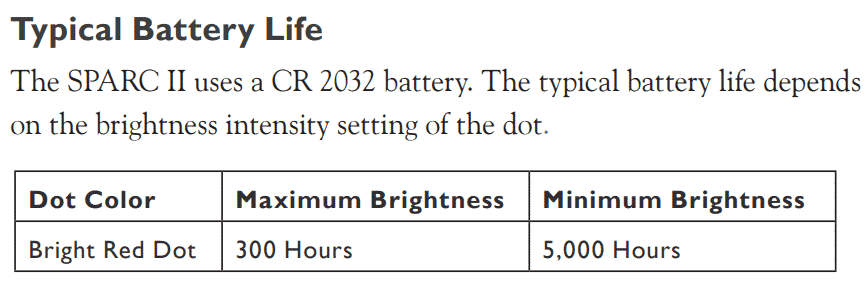

|Battery Life||12-hour auto-shutdown feature maximizes battery life. Typical battery life is 300 hours at maximum brightness and 5,000 hours at minimum brightness setting.|
|Objective Lens Diameter||22 mm|
|Adjustment Graduation||1 MOA|
|Travel per Rotation||45 MOA|
|Max Elevation Adjustment||90 MOA|
|Max Windage Adjustment||90 MOA|
|Parallax Setting||Parallax Free|
|Product Manual (PDF)||Download|
Included In the Box:

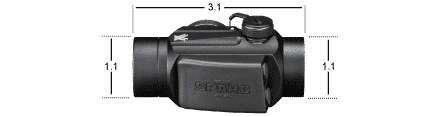

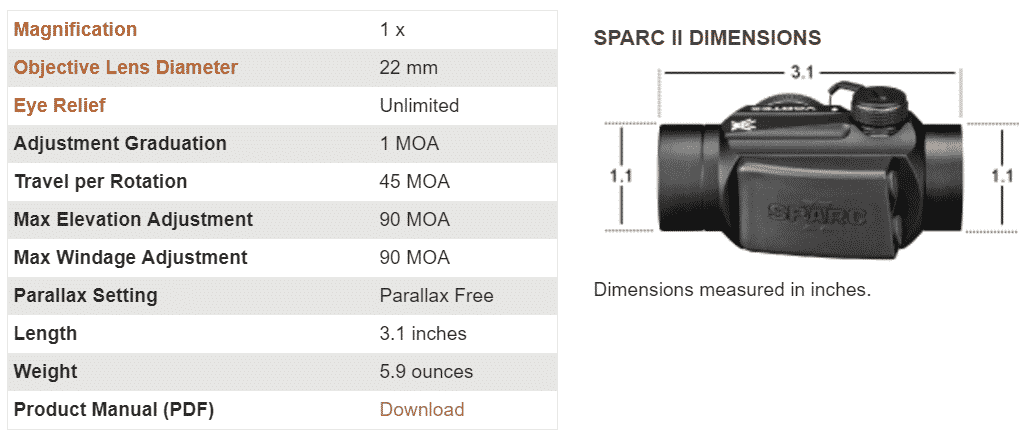

Dimensions measured in inches.
Daylight Bright Red Dot:

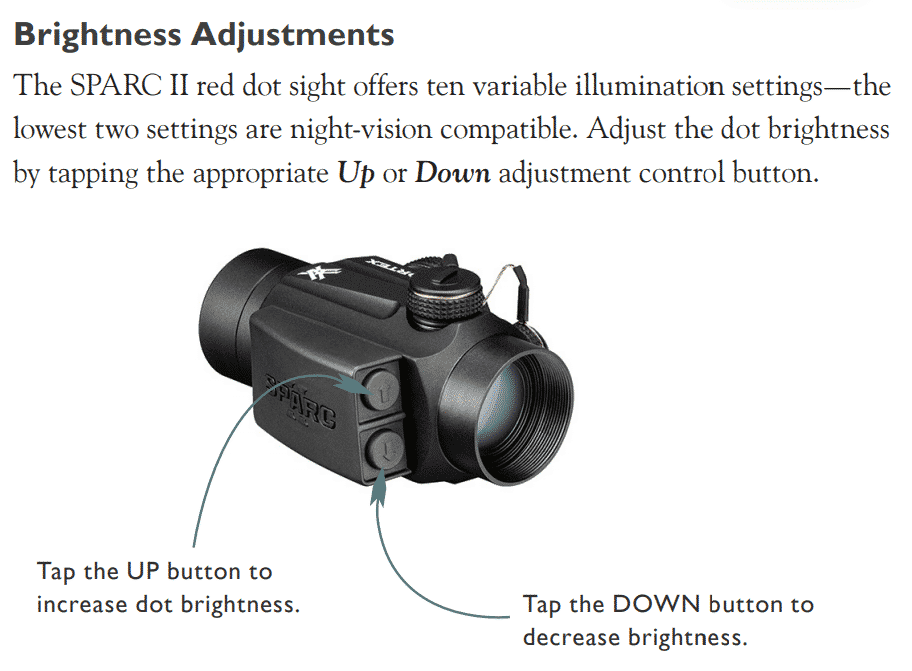

The daylight bright 2 MOA dot is fast and easy to use. Choose among ten variable illumination settings—the lowest two settings are night-vision compatible.

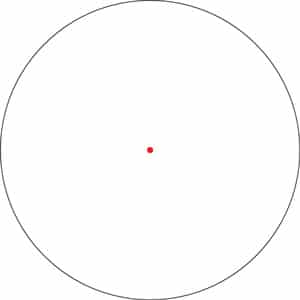

Subtension detail for the SPARC II red dot. >
