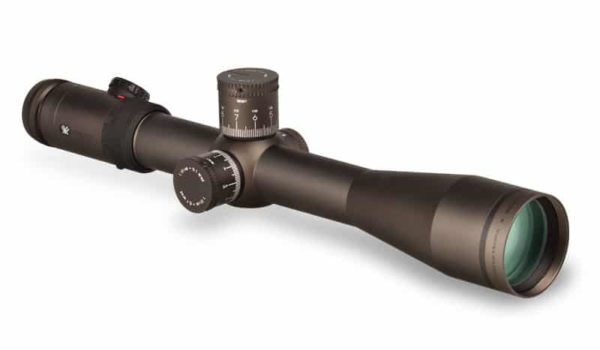

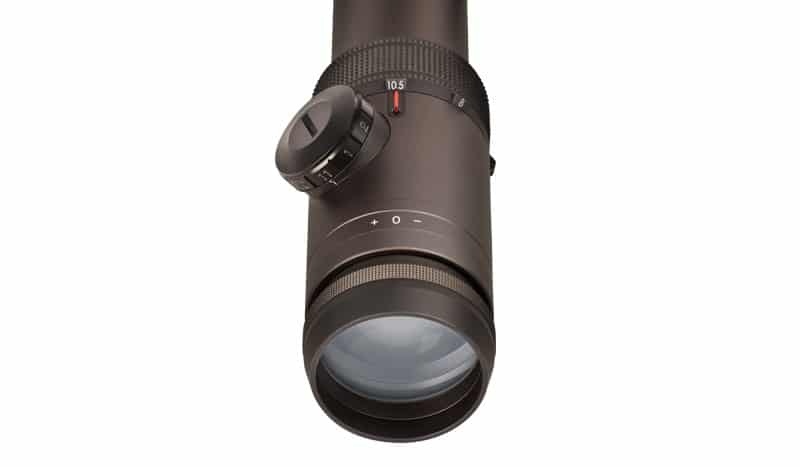

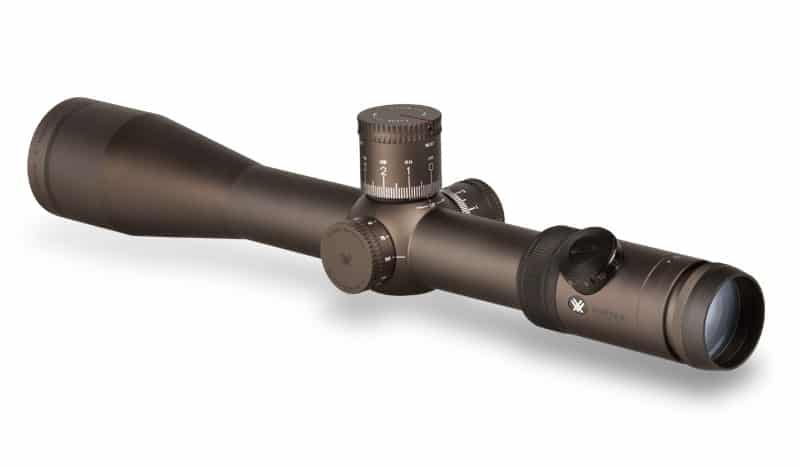

Vortex Optics RZR-52006 Razor HD 5-20x50 EBR-2B MRAD Reticle | 35mm Tube 10 MRAD Travel per Rotation

Description:

Vortex breaks new ground with our Razor HD tactical riflescopes. Built literally from the ground up to meet the demanding needs of precision shooters. The Razor HD 5-20x50 is a state-of-the-art long-range performer built on a solid 35mm one-piece tube and packed with more than a dozen unique performance and optical features—including a precision-etched first focal plane reticle.



The item is currently out of stock, contact us for a backorder purchase.

SKU: RZR-52006 Category:
Price:

$2,199.99

Out of stock

Description
Specifications

Vortex Optics RZR-52006 Razor HD 5-20x50 EBR-2B MRAD Reticle | 35mm Tube 10 MRAD Travel per Rotation 5

Included In The Box:

  • VIP Unconditional Lifetime Warranty
  • Flip cap ocular lens cover
  • Flip cap objective lens cover
  • 4-inch sunshade
  • Bubble level
  • 2 mm hex wrench
  • CR2032 battery
  • Lens cloth
Vortex Optics RZR-52006 Razor HD 5-20x50 EBR-2B MRAD Reticle | 35mm Tube 10 MRAD Travel per Rotation 6

Optical Features

APO System Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XR Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle Provides precise aiming under low-light conditions.

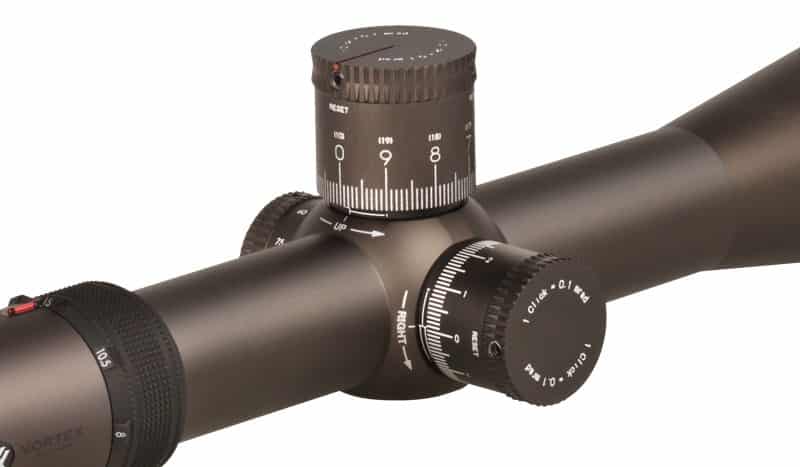

Internal Mechanism Design Features

RZR Zero Stop Rapid Zero Return (RZR) feature stops the turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. Download directions on How to set the Zero Stop. US Patent 8,166,696 B2
Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665
Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube System Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.



Convenience Features

MAG-View Fiber Optic Provides a highly visible reference point for the magnification setting.
Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879
Fast Focus Eyepiece Allows quick and easy reticle focusing.

Specifications:

Magnification 5-20 x
Objective Lens Diameter 50 mm
Eye Relief 3.9 inches
Field of View 22-5.76 feet/100 yards
Tube Size 35 mm
Turret Style Tactical
RZR Zero Stop
Adjustment Graduation .1 mrad
Travel per Rotation 10 mrad
Max Elevation Adjustment 36 mrad
Max Windage Adjustment 36 mrad
Parallax Setting 40 yards to Infinity
Length 15.8 inches
Weight 37 ounces
Product Manual (PDF) Download
Product Manual 2 (PDF) Download

Razor HD 5-20x50 Dimensions

Vortex Optics RZR-52006 Razor HD 5-20x50 EBR-2B MRAD Reticle | 35mm Tube 10 MRAD Travel per Rotation 7

Lengths
L1 L2 L3 L4 L5 L6
15.8 2.9 2.5 6.9 4.9 4.0



Heights
H1 H2
2.33 1.74

Dimensions measured in inches.

EBR-2B Reticle (MRAD)

The EBR-2B (Enhanced Battle Reticle) is a ranging reticle using mrad-based subtension lines for ranging, holdover, and windage corrections. Heavier windage dot references on the drop lines increase visibility at all magnifications as well as during low light conditions. Numbered subtensions on the crosshairs ensure quick and easy referencing.
