When you're ready to step up your long-distance game, the Strike Eagle gives you more of the tools you need for less than you'd expect. Start with excellent edge-to-edge sharpness, and add a first focal plane (FFP) illuminated reticle for fast reads at any magnification and lighting situation. Add in our RevStop Zero System for a hard return to zero, and locking turrets for fast, stay-put adjustments. Build it around a 34mm tube that accommodates massive amounts of elevation and windage travel, and a throw lever for rapid magnification changes, and you've got a long-distance impact machine that'll have you wondering how you ever shot without it.

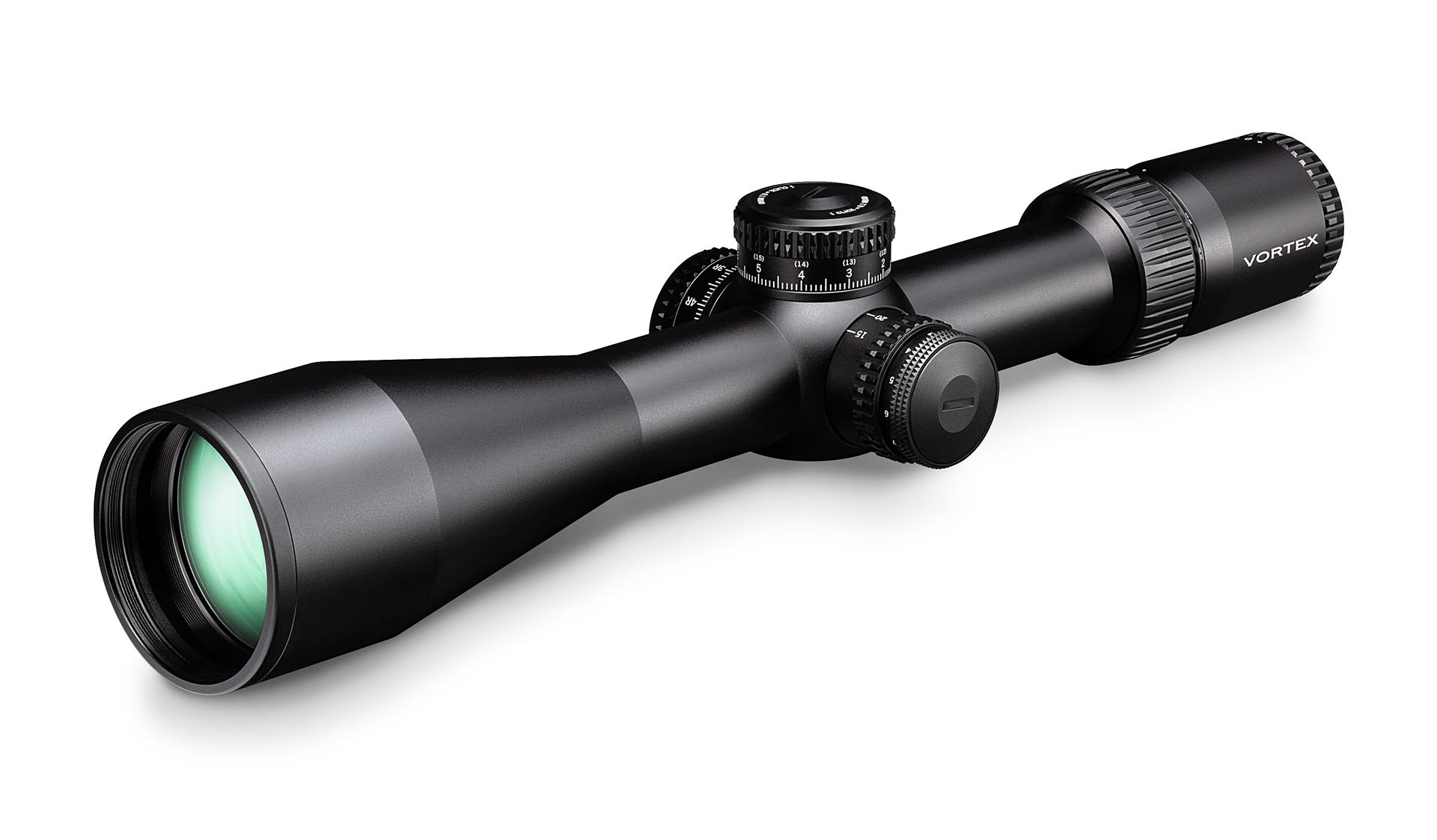

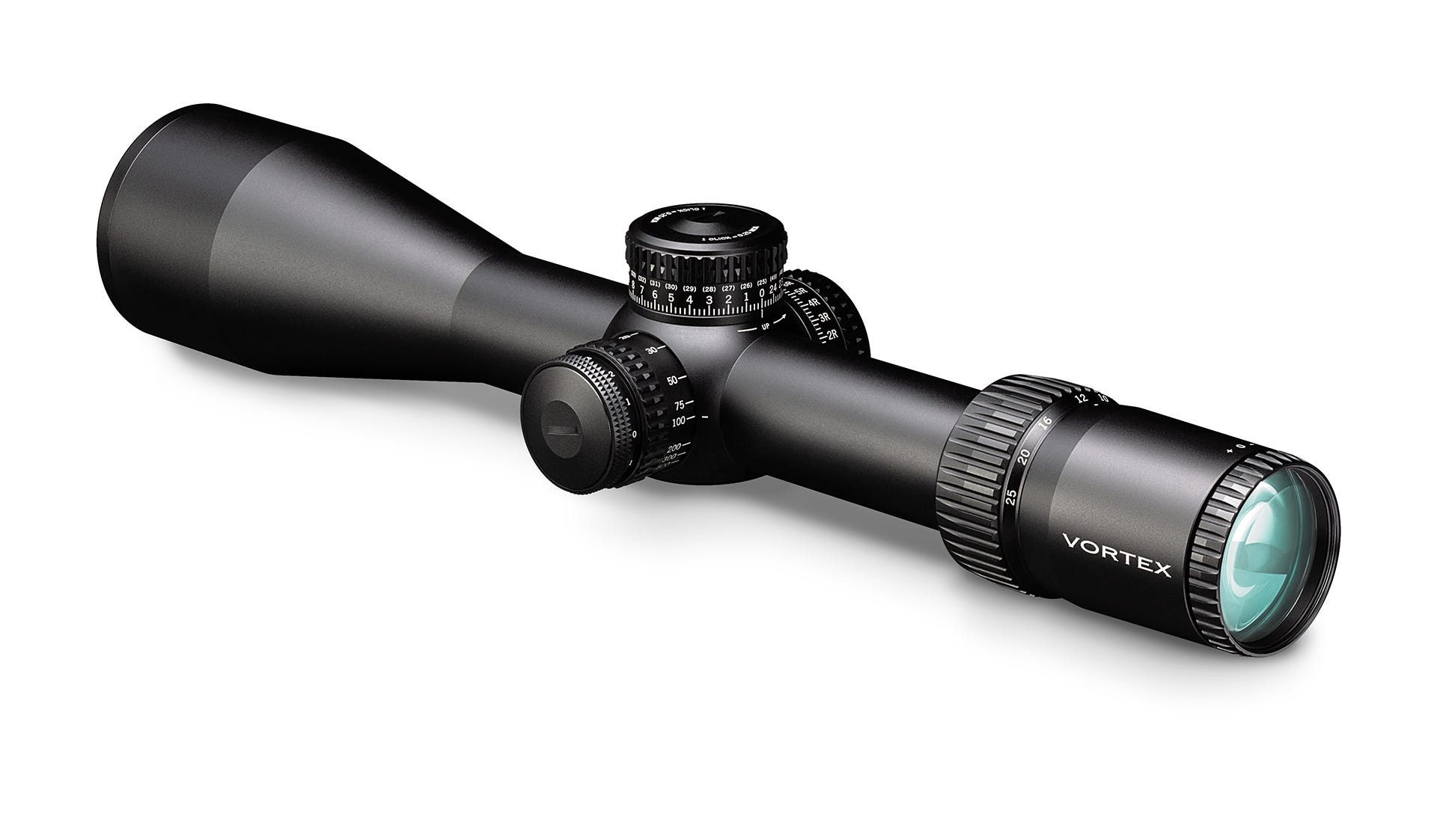

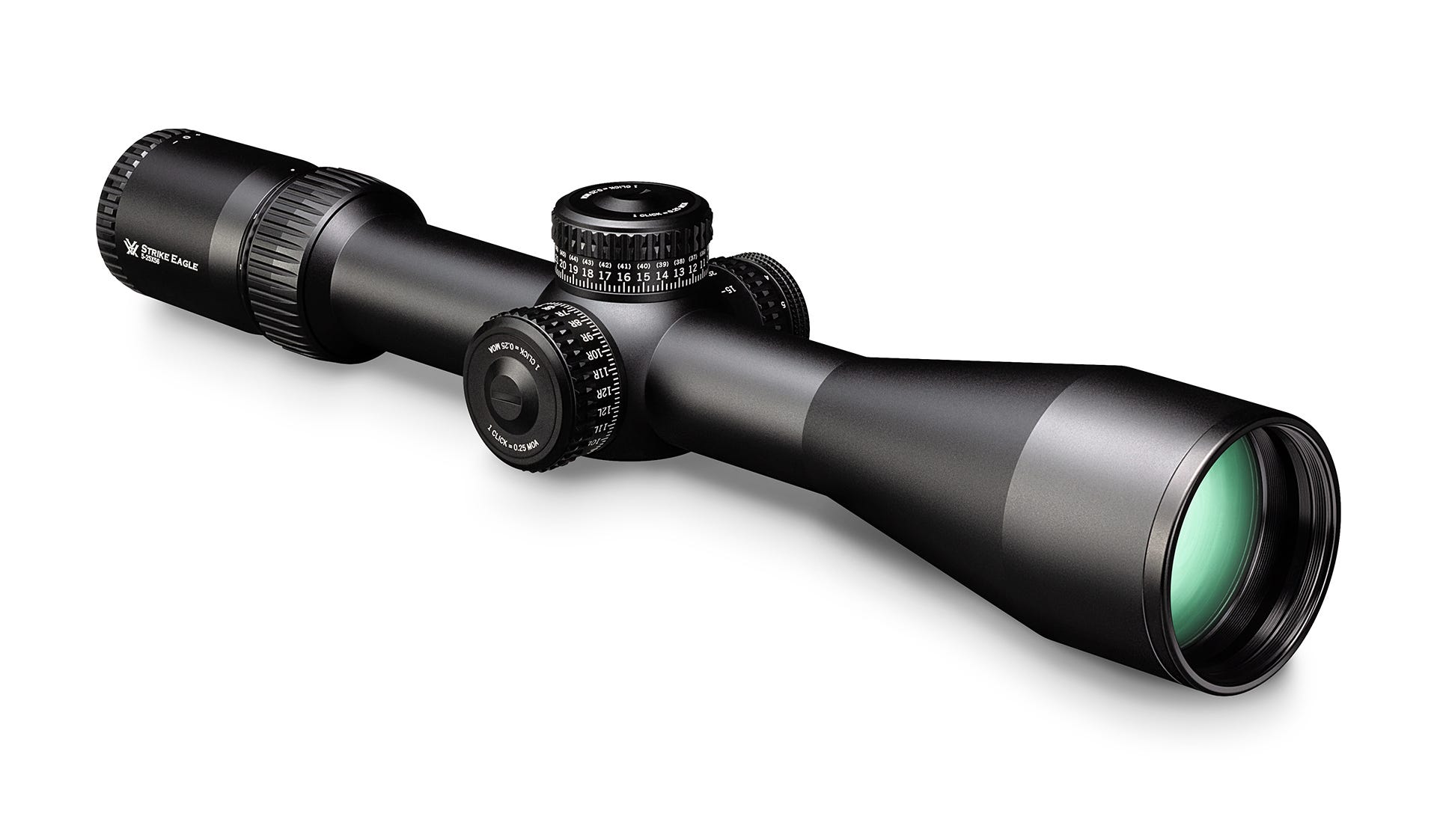

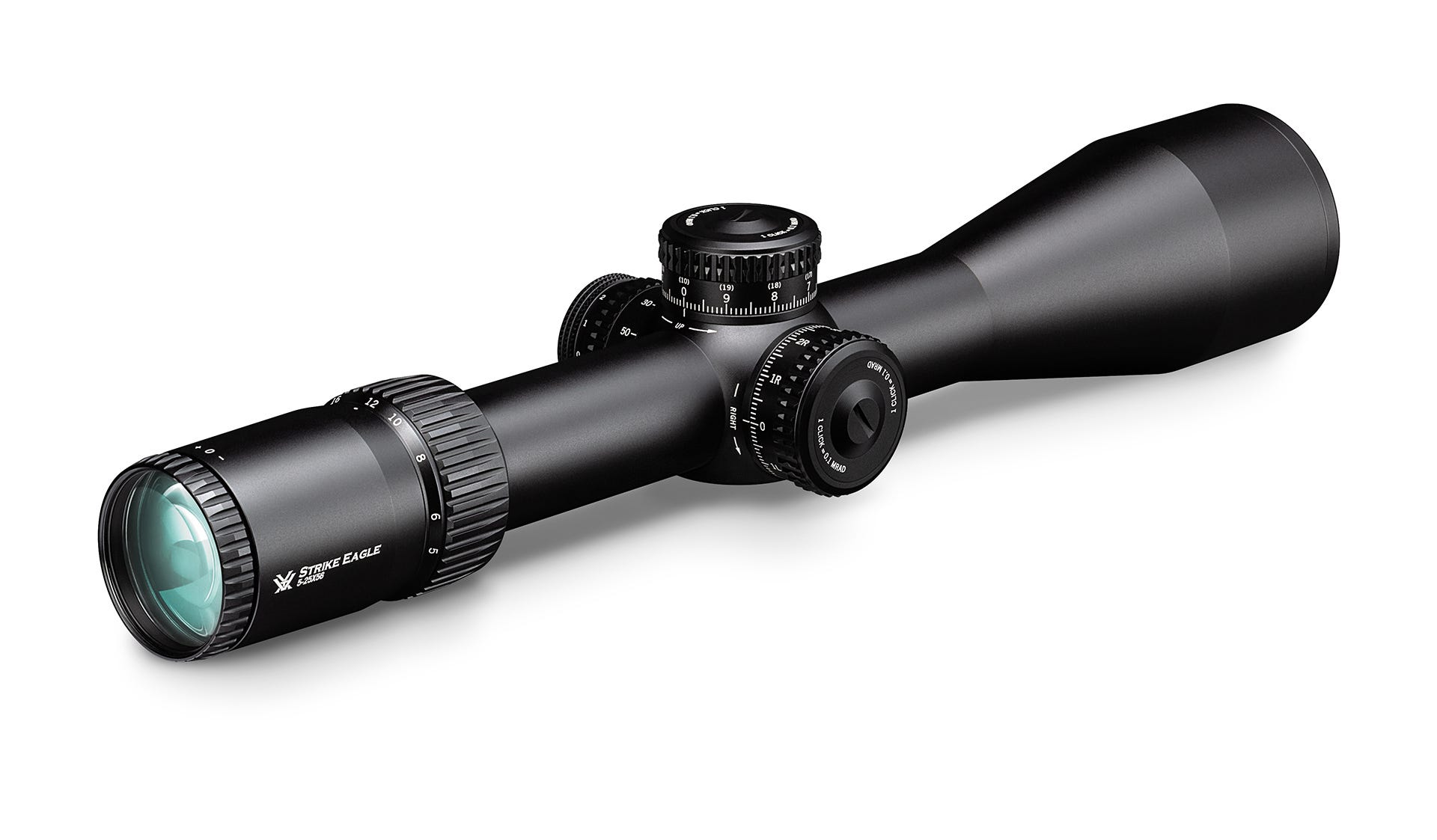

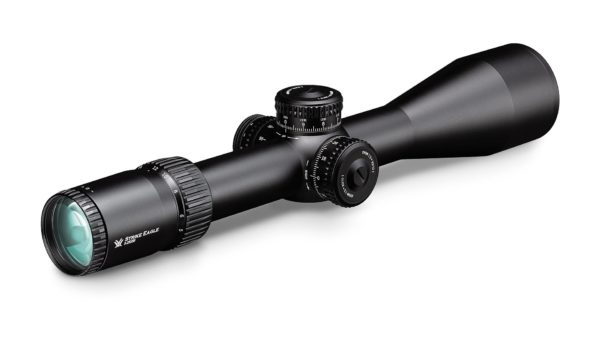

Introducing the Strike Eagle? 5-25x56 FFP. Featuring the RevStop? Zero System for easy return to zero, exposed locking turrets and illuminated first focal plane reticle, the Strike Eagle 5-25x56 gives tactically-minded shooters all the tools they need to dominate the long range game.
SE-52503 Optical Features:
|XD? Lens Elements||Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.|
|Fully Multi-Coated||Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.|
|First Focal Plane Reticle||Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.|
|Glass-Etched Reticle||?Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.|
SE-52503 Construction Features:
|ArmorTek ?||Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.|
|Shockproof||Rugged construction withstands recoil and impact.|
|Waterproof||O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.|
|Fogproof||Nitrogen gas purging prevents internal fogging over a wide range of temperatures.|
|Tube Size||34 mm diameter provides maximized internal adjustment and strength.|
|Side Focus||Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.|
|Aircraft-Grade Aluminum||Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.|
|Tactical Locking Turrets||Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments.|
SE-52503 Convenience Features:
|Fast Focus Eyepiece||Allows quick and easy reticle focusing.|
|Throw Lever||The included throw lever can be installed for quick and easy magnification adjustments.|
|RevStop? Zero System||Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.|
|Objective Lens Diameter||56 mm|
|Eye Relief||3.7 inches|
|Field of View||24.0 - 5.2 ft @100 yds|
|Tube Size||34 mm|
|Elevation Turret Style||Locking/Zero Stop|
|Windage Turret Style||Locking|
|Adjustment Graduation||1/4 MOA|
|Travel Per Rotation||25 MOA|
|Max Elevation Adjustment||110 MOA|
|Max Windage Adjustment||78 MOA|
|Parallax Setting||15 yards to infinity|
|Product Manual (PDF)||Download|
|Reticle Manual (PDF)||Download|
**Dimensions measured in inches.
**Dimensions measured in inches.
EBR-7C (MOA) RETICLE:
Hash-marked reticle using MOA or MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below..
Subtension detail for Strike Eagle 5-25x56 riflescope with EBR-7C MOA reticle.
