DBK-10029 Vortex Optics DIAMONDBACK® TACTICAL 6-24X50 FFP EBR-2C (MRAD) Reticle | 30 mm Tube Riflescope

Description:

DBK-10029 Vortex Optics DIAMONDBACK® TACTICAL 6-24X50 FFP EBR-2C (MRAD) Reticle | 30 mm Tube Riflescope

SKU: DBK-10029 Categories: ,
Price:

$532.35

Out of stock

Description
Specifications

DBK-10029 Vortex Optics DIAMONDBACK® TACTICAL 6-24X50 FFP EBR-2C (MRAD) Reticle | 30 mm Tube Riflescope

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.



Features:

Optical Features:

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.



Construction Features:

Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.



Internal Mechanism Design Features:

Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.



Convenience Features:

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.



Specifications:

Magnification 6-24x
Objective Lens Diameter 50 mm
Eye Relief 3.9 inches
Field of View 18-4.5 ft/100 yds
Tube Size 30 mm
Turret Style Tall Exposed Tactical
Adjustment Graduation 1 MRAD
Travel per Rotation 6 MRAD
Max Elevation Adjustment 19 MRAD
Max Windage Adjustment 19 MRAD
Parallax Setting 10 yards to infinity
Length 14.28 inches
Weight 24.6 oz
Product Manual Download (PDF)
Reticle Manual Download (PDF)
Parts Diagram Download (PDF)



Included In the Box:

  • Sunshade
  • Lens Covers
  • Lens cloth

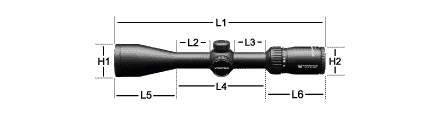

Measurments:

DBK-10029 Vortex Optics DIAMONDBACK® TACTICAL 6-24X50 FFP EBR-2C (MRAD) Reticle | 30 mm Tube Riflescope 8

LENGTHS
L1 L2 L3 L4 L5 L6
14.28 2.3 2.7 6.56 3.98 3.77

**Dimensions measured in inches.

HEIGHTS
H1 H2
2.25 1.73

**Dimensions measured in inches.

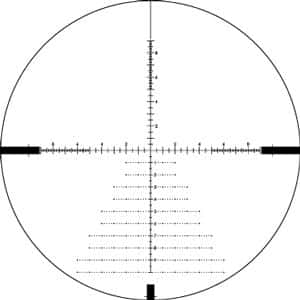

EBR-2C (MRAD)

Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

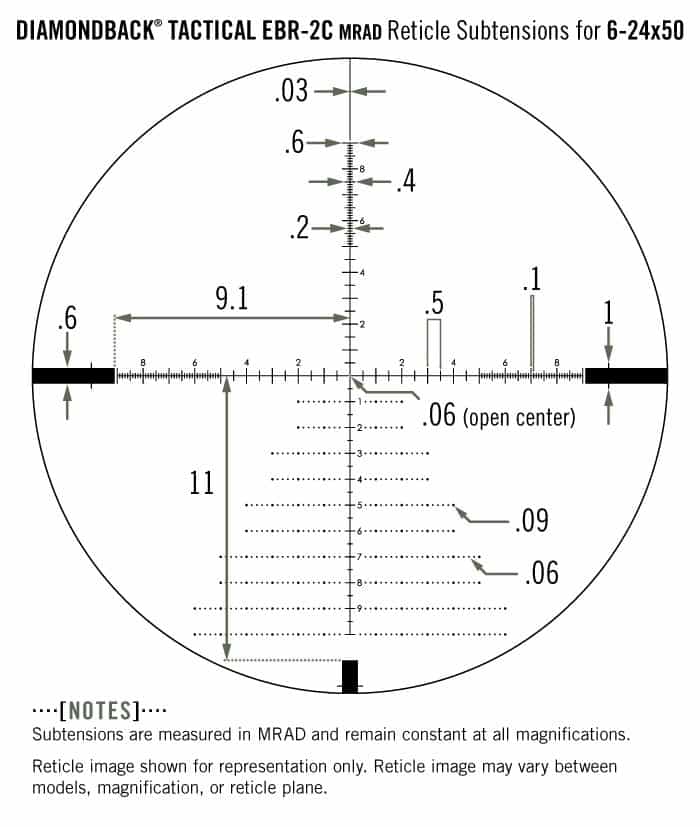

Subtension detail for Diamondback Tactical 6-24x50 FFP riflescope with EBR-2C MRAD reticle.



DBK-10029 Vortex Optics DIAMONDBACK® TACTICAL 6-24X50 FFP EBR-2C (MRAD) Reticle | 30 mm Tube Riflescope 9
