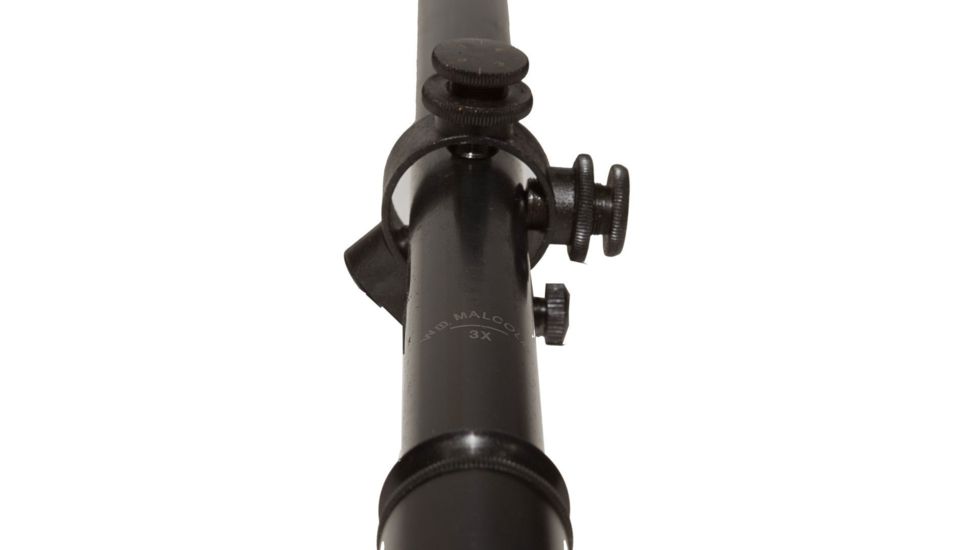

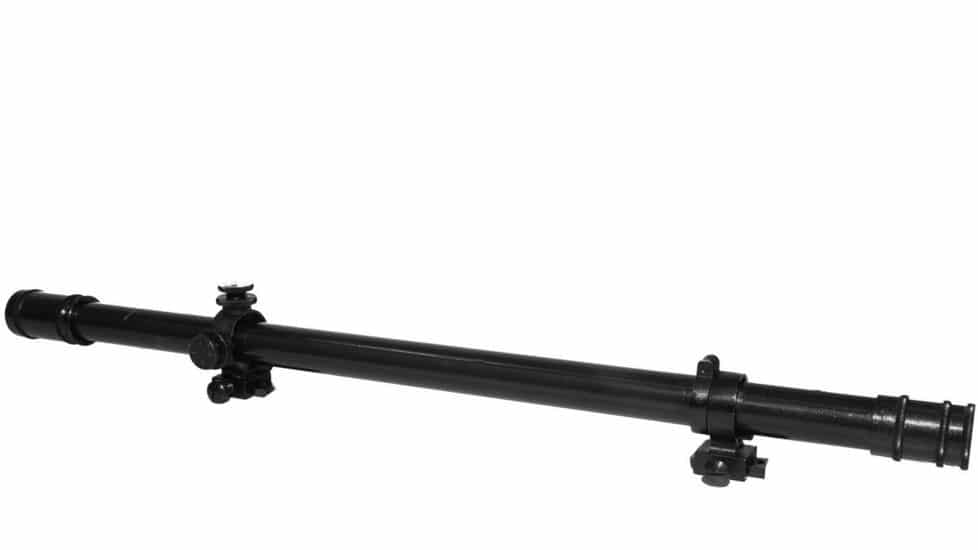

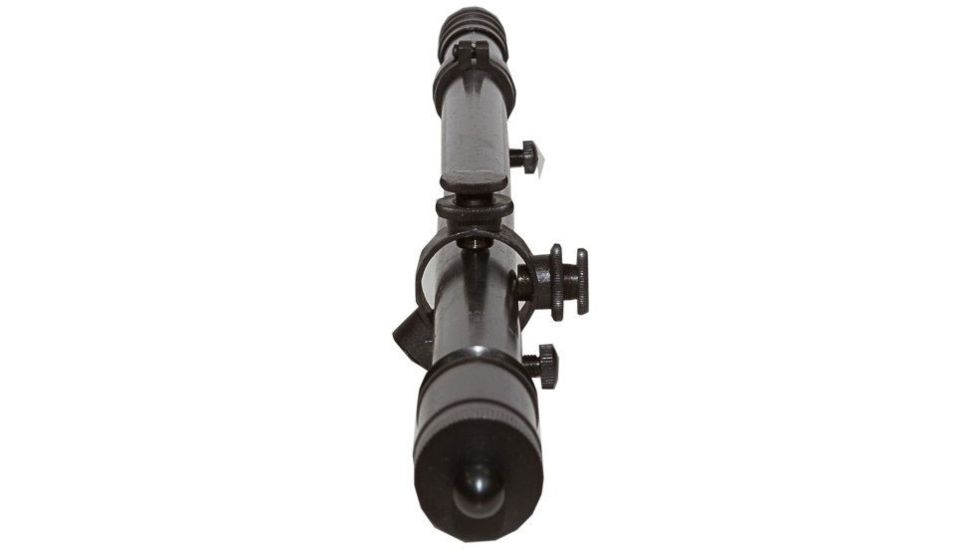

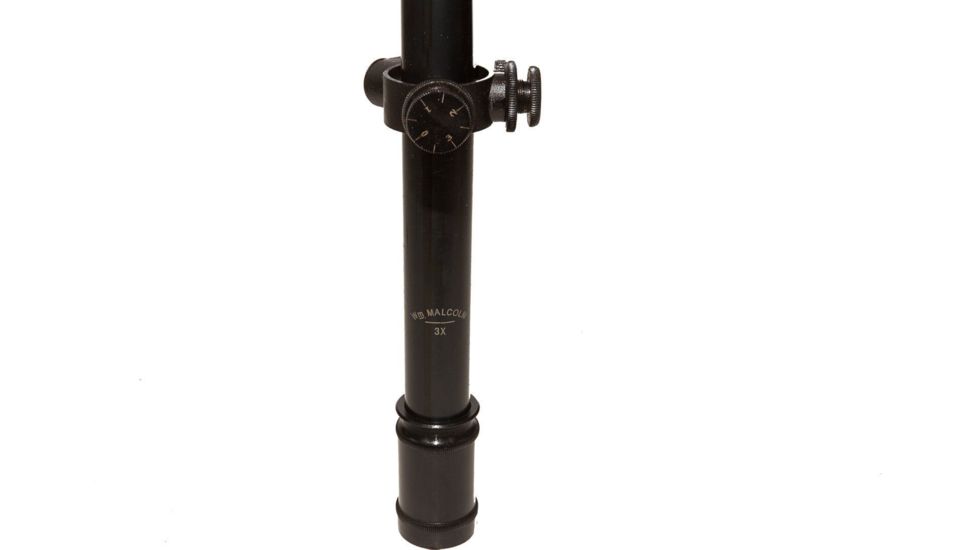

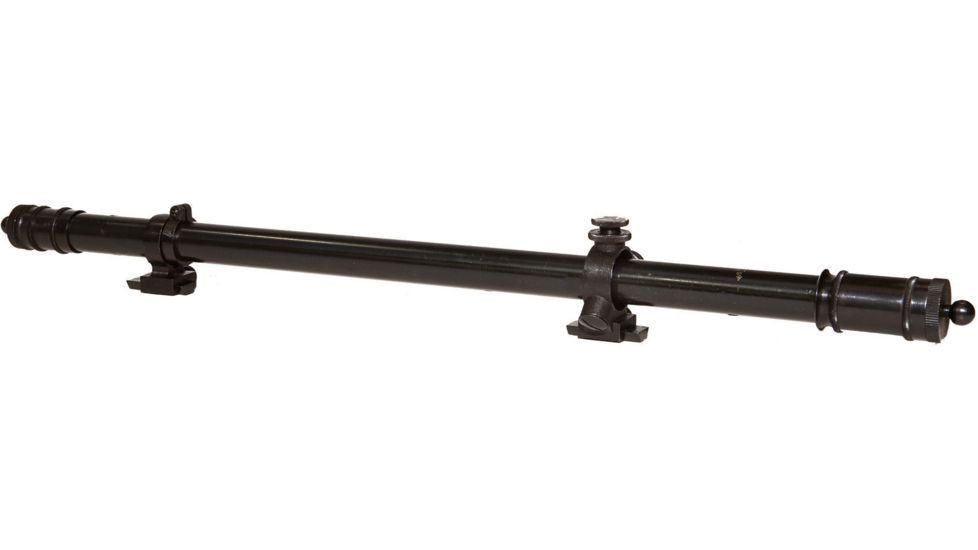

M334151 Hi Lux Malcolm 3X 17" Short Telescopic Rifle Sight


The Leatherwood William Malcolm 3x16mm Short Telescopic Rifle Sight M334151 was designed to be the perfect scope for almost any shooter. Treated with DiamondTuff14™, the exterior air-glass lenses on the Leatherwood Leatherwood/Hi-Lux 3x Short Telescopic Sight ensure optimal light transmission for enhanced visibility in low light situations.

SKU: M334151 Categories: ,


Out of stock


M334151 Hi Lux Malcolm 3X 17" Short Telescopic Rifle Sight

William Malcolm is the oldest name in scope manufacturing, originally established in 1855. Malcolm Optics has stepped back in the time to redesign this historic line of telescopic rifle sights, providing today’s shooter a period correct scope with modern optics.

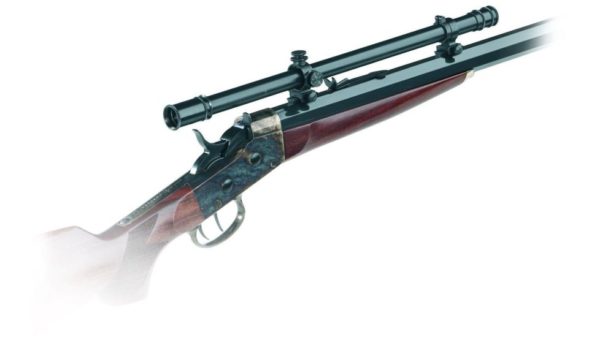

Both the 3X 17″ and 6X 18″ Malcolm scopes are ideal for many of the single-shot and lever-action cartridge rifles produced during the late 1880s and 1890s. An ever growing selection of the mounts and accessories now include the side mounts for various sharps rifle models, Winchester Model 1885 rifle, H&R “ Buffalo Classic”, Winchester ’73, ’76, ’92 & ‘94 models, Henry “Golden Boy” .22, Marlin ’94 / ’95 models, and others.

Every glass lens in the Malcolm 3X short scope is fully multi-coated. The scope is also nitrogen purged and sealed. The Malcolm 3X and 6X short scope are among the finest quality reproduction vintage riflescopes available today!


Objective Lens Diameter: 17 mm
Magnification: 3 x

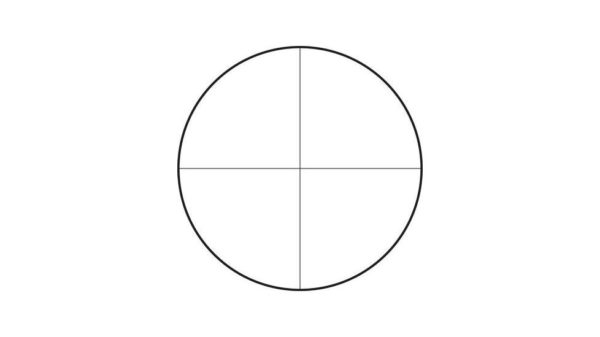

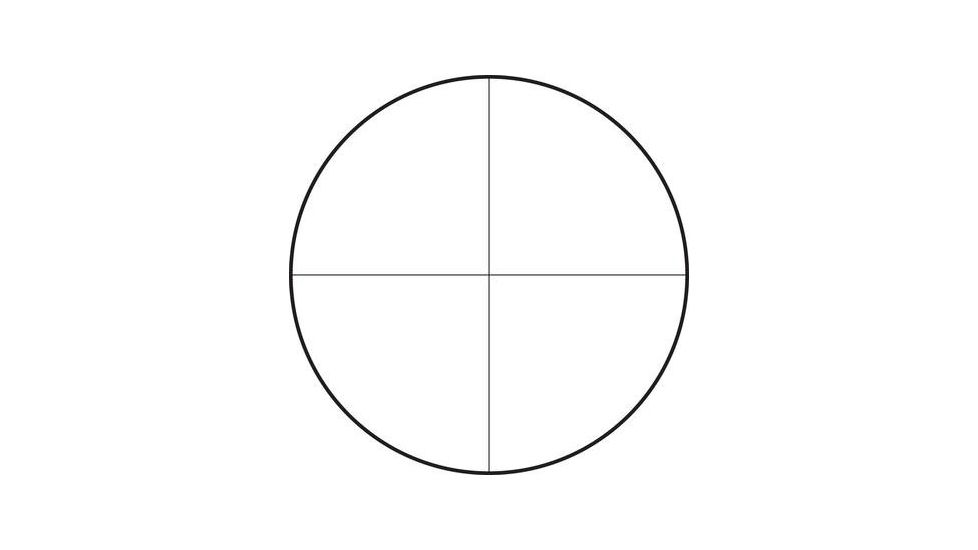

Reticle: Fine Cross
Tube Diameter: 0.75 in
Reticle Focal Plane: Second Focal Plane (SFP)
Exit Pupil: 5.8 mm
Field of View, Linear: 15 ft at 100 yds
Eye Relief: 4.5 in
Diopter Adjustment Range: -3 - 3 dpt
Color: Black
Weight: 17.5 oz
Fabric/Material: Steel
Length: 17 in
Width: 2 in
Height: 2 in
Illumination Type: Non-Illuminated
Adjustment Type: MOA
Parallax: 3.33 yds to infinity
Focus Range: 100 yds
Lens Material: Glass
Optical Coating: Fully Multi-Coated, Diamond Tuff14
Operating Temperature: -20 - 60 Celsius
Weather Resistance: Yes
Water Resistance Level: IP64
Shockproof: Yes
Fogproof: Yes
Finish: Matte

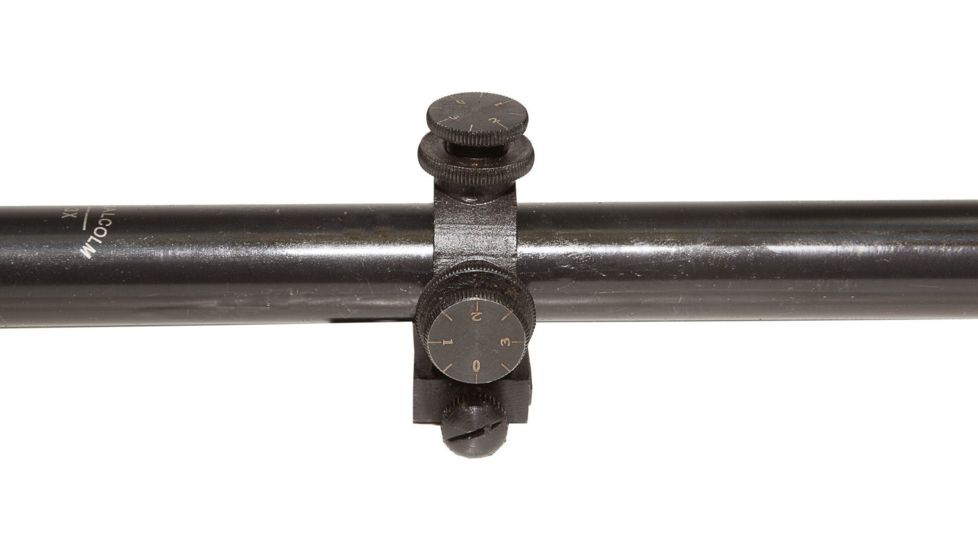

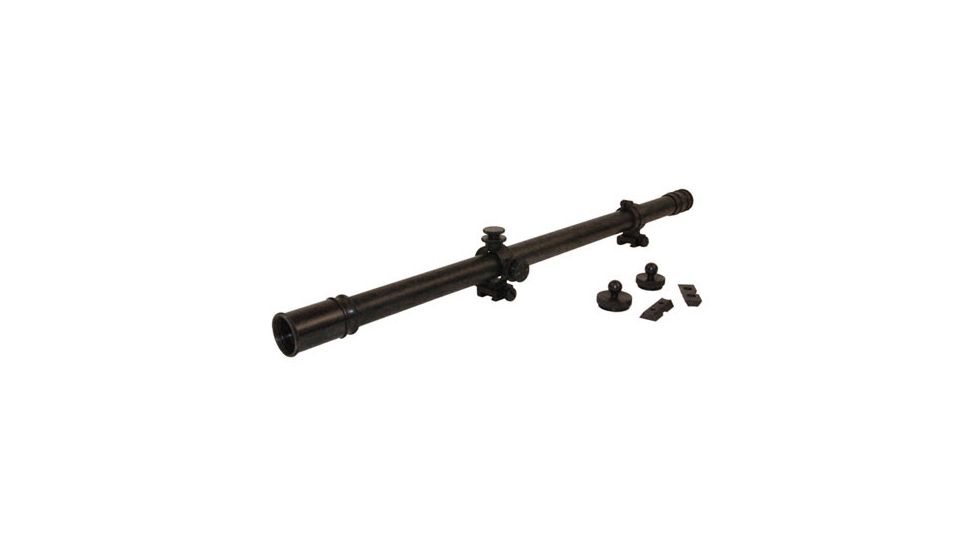

Included Accessories: Mounts/M334MT, Bases/M050UB-D, Front/Rear Screw-In Lens Covers, Lock Ring
Magnification Type: Fixed


  • 3X Magnification; 17in Long; 3/4in Tube; Mounts and Bases included; Fine Cross Reticle
