M40USMC39X40 Hi-Lux M40 3X-9X USMC Dual Focal Plane Riflescope


Get the vintage look you've been searching for with modern, up to date features, look no further than the Hi-Lux M40 USMC 3-9x40mm Waterproof Rifle Scope Replica. Reminiscent of Vietnam War era Marine Corp scope design, these Rifle Scopes developed by Hi-Lux Leatherwood incorporate an Auto-Ranging System that can accurately range from 200 to 600 yards with its etched glass yardage ranging scale.

SKU: M40USMC39X40 Categories: ,


Out of stock


M40USMC39X40 Hi-Lux M40 3X-9X USMC Dual Focal Plane Riflescope

In 1965, the U.S. Marine Corps began its search for a new rifle and scope combo to serve as their official combat sniper rifle. The goal was to have USMC armorers customize and accurize a readily available production rifle. The Corps settled on the Remington Model 40x, chambered for the .308 Winchester (a.k.a. 7.62 NATO) cartridge, and topped it with a commercially available 3-9x40mm hunting scope with an Accu-Ranging scale. The rifle was designated the M40.

Hi-Lux Optics is now recreating this 1960′s era scope for all of those “old school” sharpshooters among us, those who take the time to know the trajectory of the loads they shoot. However, we’ve made major internal improvements. The optics are far superior to that of the original, with precision ground lenses that are fully multi-coated for maximum light transmission. We’ve also added positive 1/4″ click adjustments to the windage and elevation turrets.


Objective Lens Diameter: 40 mm
Magnification: 3 - 9 x
Reticle: Ranging
Tube Diameter: 1 in
Reticle Focal Plane: Second Focal Plane (SFP)
Exit Pupil: 4.4 - 13.3 mm
Field of View, Linear: 12.6 - 37.7 ft at 100 yds
Eye Relief: 3.25 in
Diopter Adjustment Range: -3 - 3 dpt
Color: Green
Weight: 16.2 oz
Fabric/Material: Aluminum
Length: 12.5 in
Width: 1.5 in
Height: 1.25 in
Illumination Type: Non-Illuminated
Adjustment Type: MOA
Adjustment Click Value: 1/4 MOA
Adjustment Range: 60 MOA
Parallax: 100 yds
Focus Range: 100 yds
Lens Material: Glass
Optical Coating: Fully Multi-Coated, Diamond Tuff14
Attachment/Mount Type: Ring
Operating Temperature: -20 - 60 Celsius
Weather Resistance: Yes
Water Resistance Level: IP64
Shockproof: Yes
Fogproof: Yes
Finish: Anodized Green
Included Accessories: Microfiber cloth, Flip-up Lens Covers
Magnification Type: Variable
Additional Features: 1in Main Tube, Ranging Reticle
W/E Travel at 100 Yds: 60 MOA

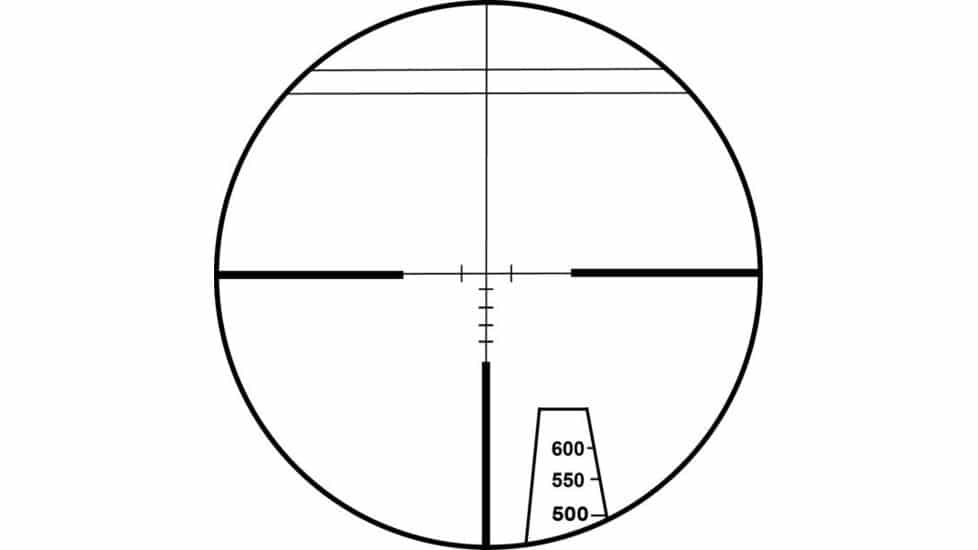

  • The M40 USMC is our classic reproduction of the Redfield M40 3-9X40 scopes. The USMC reticle incorporates a dual focal ranging reticle that allows the shooter to estimate range by framing 18in known sized targets.

Product Overview Video:
